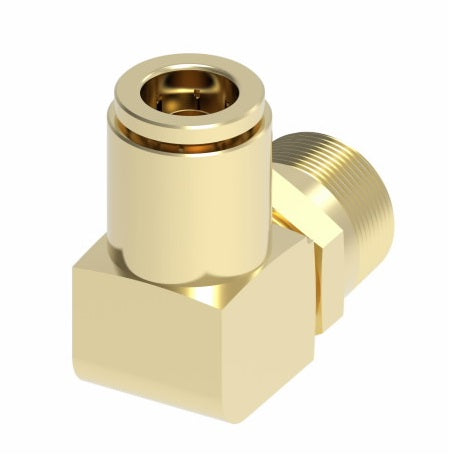

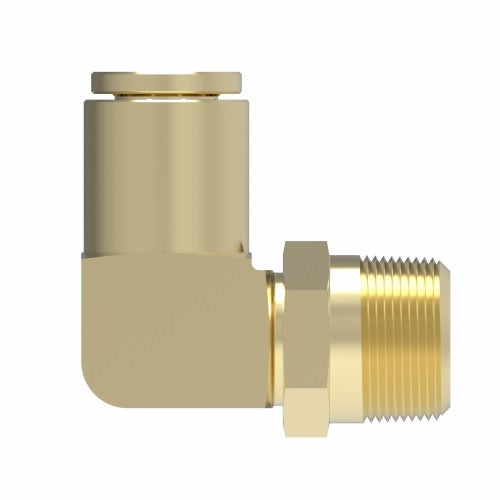

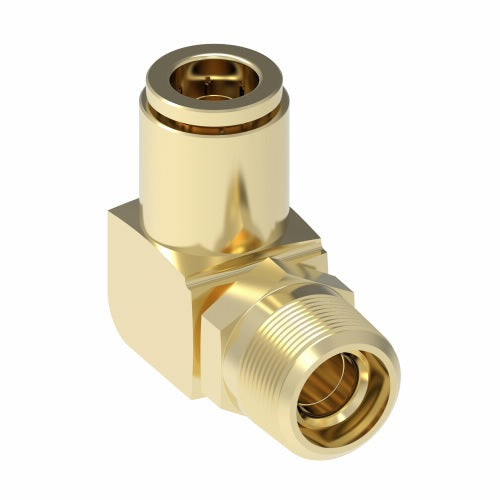

1869X4S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 1/4" Tube OD x 1/8" Male NPTF | Brass
Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.16 |
| 40–79 | $11.90 |
| 80+ | $10.50 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
|||
| Assembly & Disassembly: | |||
 |
||||||
|---|---|---|---|---|---|---|
| Brass Part Number |
Tube O.D. | Male Pipe Thread | D1 | M | N | Hex C |
| 1869X4S | 1/4" | 1/8" | 0.14" | 0.89" | 0.88" | 7/16" |
| 1869X4X4S | 1/4" | 1/4" | 0.23" | 0.99" | 1.06" | 9/16" |
| 1869X4X6S | 1/4" | 3/8" | 0.30" | 0.99" | 1.06" | 11/16" |
| 1869X6X2S | 3/8" | 1/8" | 0.74" | 1.03" | 0.97" | 7/16" |
| 1869X6S | 3/8" | 1/4" | 0.23" | 1.12" | 1.14" | 9/16" |
| 1869X6X6S | 3/8" | 3/8" | 0.30" | 1.12" | 1.15" | 11/16" |
| 1869X6X8S | 3/8" | 1/2" | 0.42" | 1.18" | 1.40" | 7/8" |
| 1869X8X4S | 1/2" | 1/4" | 0.22" | 1.08" | 1.20" | 9/16" |
| 1869X8S | 1/2" | 3/8" | 0.30" | 1.13" | 1.27" | 11/16" |
| 1869X8X8S | 1/2" | 1/2" | 0.42" | 1.25" | 1.47" | 7/8" |
| 1869X10S | 5/8" | 1/2" | 0.42" | 1.38" | 1.54" | 7/8" |
