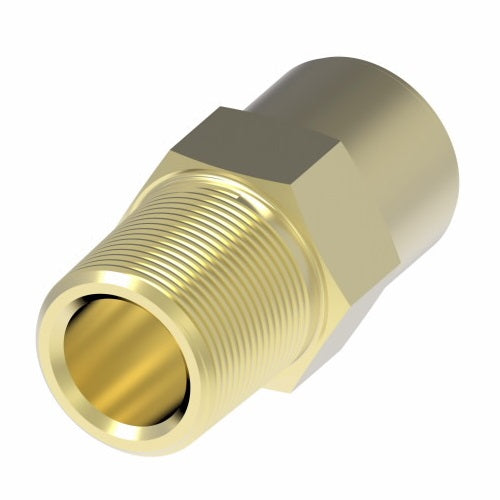

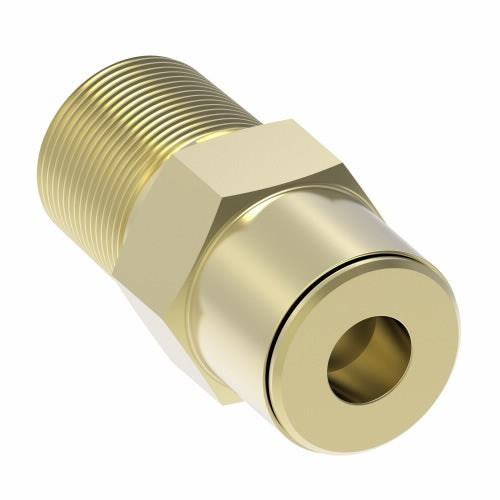

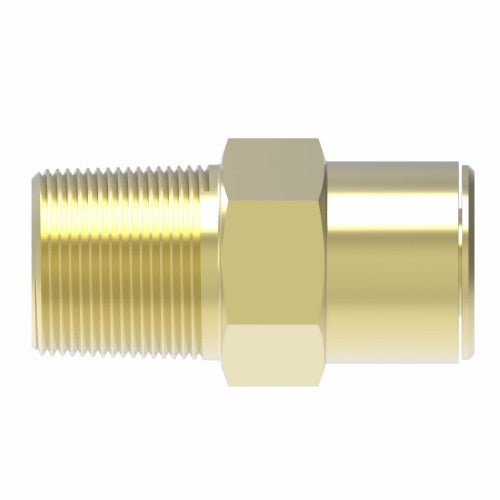

1868X2.5X1 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 5/32" Tube OD x 1/16" Male NPTF | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.06 |
| 40–79 | $5.48 |
| 80+ | $4.84 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
|||
| Assembly & Disassembly: | |||
 |
|||||
|---|---|---|---|---|---|
| Brass Part Number |
Tube O.D. | Male Pipe Thread | Hex C |
D1 | L |
| 1868X2.5X1 | 5/32" | 1/16" | 3/8" | 0.09" | 0.92" |
| 1868X2.5 | 5/32" | 1/8" | 7/16" | 0.25" | 0.92" |
| 1868X3 | 3/16" | 1/8" | 1/2" | 0.25" | 0.92" |
| 1868X4 | 1/4" | 1/8" | 9/16" | 0.19" | 0.95" |
| 1868X4X4 | 1/4" | 1/4" | 9/16" | 0.34" | 1.18" |
| 1868X4X6 | 1/4" | 3/8" | 11/16" | 0.41" | 1.17" |
| 1868X6X2 | 3/8" | 1/8" | 11/16" | 0.19" | 1.33" |
| 1868X6 | 3/8" | 1/4" | 11/16" | 0.31" | 1.29" |
| 1868X6X6 | 3/8" | 3/8" | 11/16" | 0.41" | 1.27" |
| 1868X6X8 | 3/8" | 1/2" | 7/8" | 0.53" | 1.47" |
| 1868X8X4 | 1/2" | 1/4" | 13/16" | 0.31" | 1.46" |
| 1868X8 | 1/2" | 3/8" | 13/16" | 0.41" | 1.35" |
| 1868X8X8 | 1/2" | 1/2" | 7/8" | 0.53" | 1.50" |
| 1868X10X6 | 5/8" | 3/8" | 1" | 0.41" | 1.72" |
| 1868X10 | 5/8" | 1/2" | 1" | 0.53" | 1.71" |
| 1868X12 | 3/4" | 1/2" | 1-1/16" | 0.53" | 1.72" |
