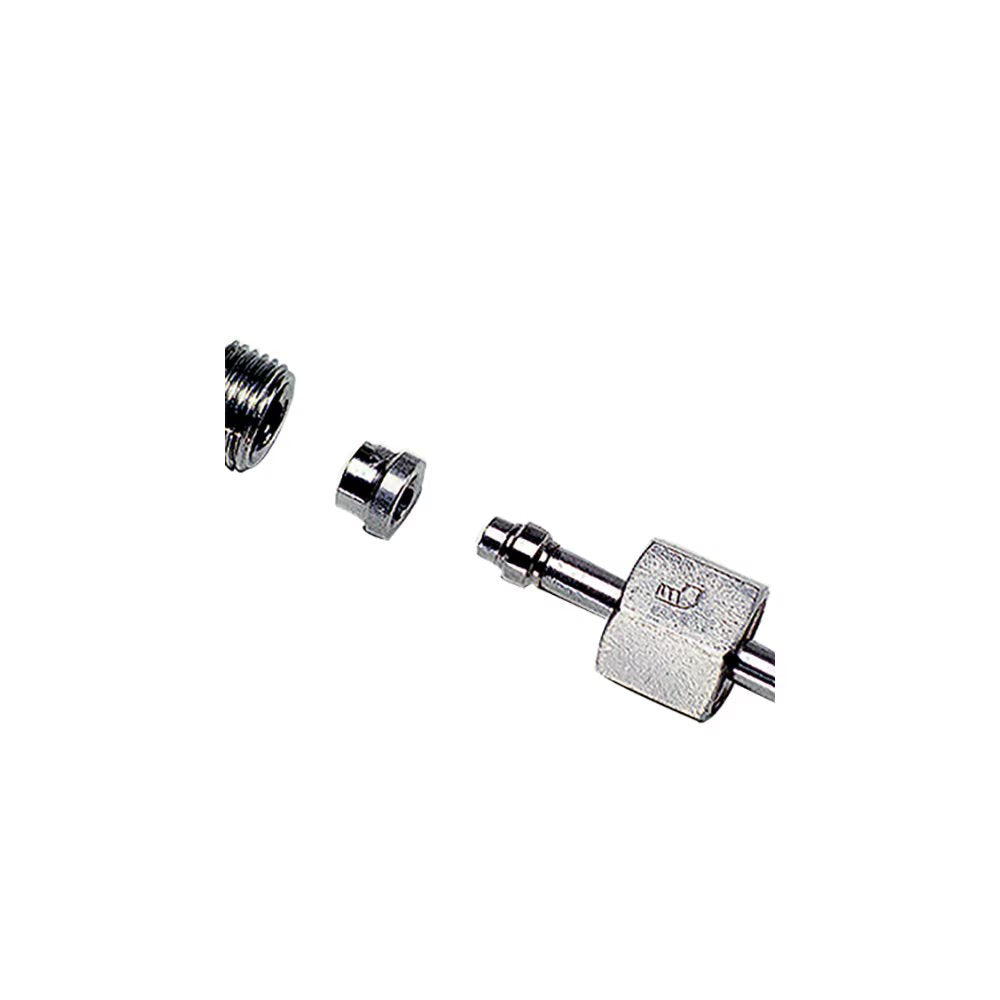

1866 08 10 by Parker | 3-Piece Reducer | 10 mm Tube OD x 8 Tube OD | 19 mm Hex | Straight | 316L Stainless Steel | Pack of 2

1866 08 10 by Parker | 3-Piece Reducer | 10 mm Tube OD x 8 Tube OD | 19 mm Hex | Straight | 316L Stainless Steel | Pack of 2

Sale price$235.69

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1866 3-Piece Reducer

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $221.55
30–59 $200.34
60+ $176.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1866 Series
Shape:

Straight

Material(s):
  • 316L Stainless Steel
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD1 ØD2 F Kg
1866 08 10 8 mm 10 mm 19 mm .025 Kg
