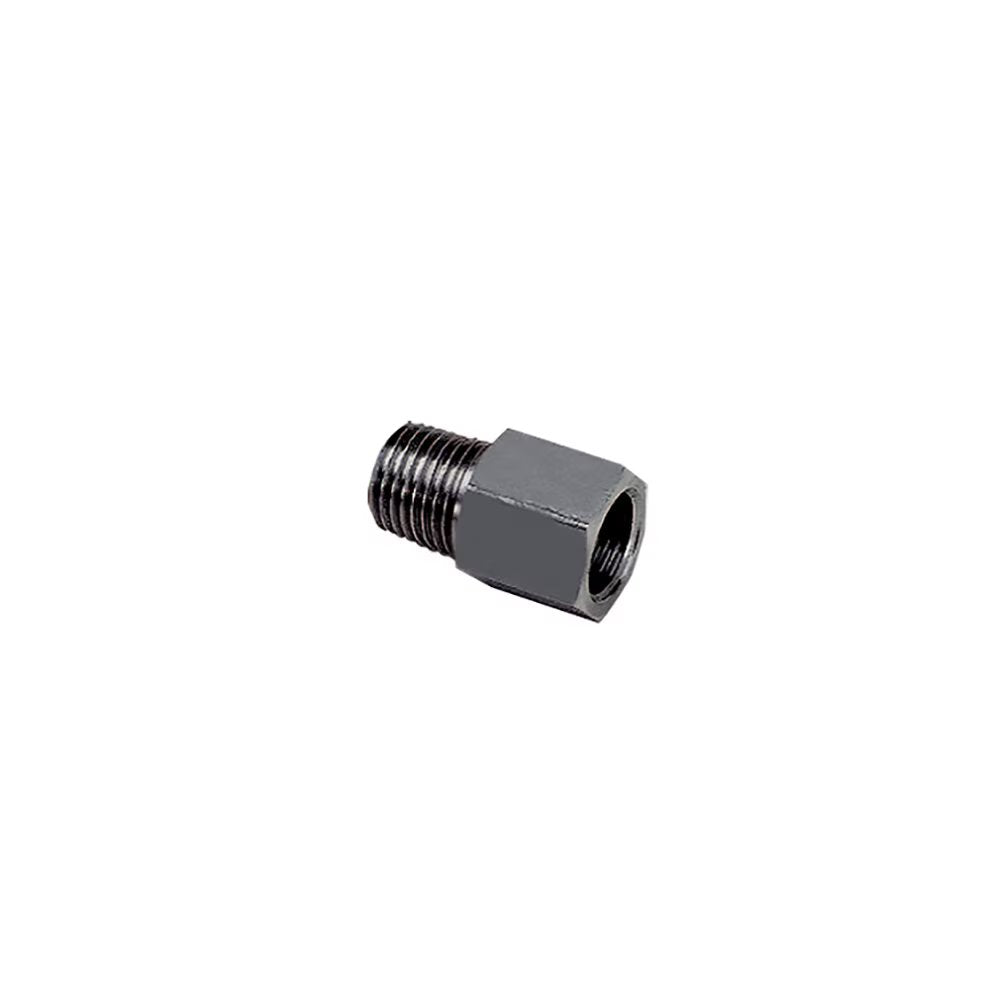

1864 18 17 by Parker | Legris Adapter | 3/8" Male NPT Thread x 3/8" Female BSPP Thread | 22 mm Hex | 31 mm Length | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Adapters:1864 Adaptor, Male NPT/Female BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $115.35 |
| 30–59 | $104.30 |
| 60+ | $92.03 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | C2 | C3 | E | F | L | Kg |
| 1864 11 10 | 1/8" | 1/8" | 7.5 mm | 14 mm | 21.5 mm | .015 Kg |
| 1864 14 13 | 1/4" | 1/4" | 11 mm | 17 mm | 30 mm | .028 Kg |
| 1864 18 17 | 3/8" | 3/8" | 11.5 mm | 22 mm | 31 mm | .044 Kg |
| 1864 22 21 | 1/2" | 1/2" | 15 mm | 27 mm | 39.5 mm | .081 Kg |
