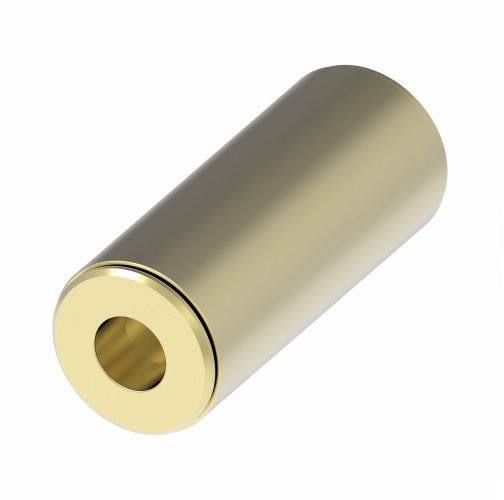

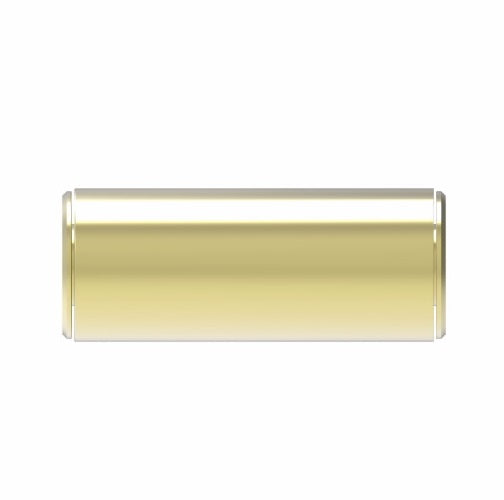

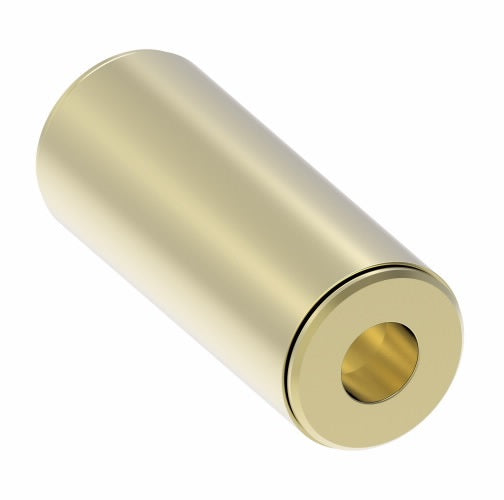

1862X6 by Danfoss | Quick Connect Air Brake Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1862X6 by Danfoss | Quick Connect Air Brake Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1862X6 by Danfoss | Quick Connect Air Brake Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

1862X6 by Danfoss | Quick Connect Air Brake Adapter | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

Sale price$18.18

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Union
Buy More, Save More!
Quantity Price Each
10–39 $17.09
40–79 $15.45
80+ $13.64
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0101
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Diameter
C		 L
1862X2.5 5/32" 0.44" 1.41"
1862X3 3/16" 0.44" 1.62"
1862X4 1/4" 0.53" 1.62"
1862X6 3/8" 0.69" 1.94"
1862X8 1/2" 0.83" 1.96"
1862X10 5/8" 0.96" 2.51"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
