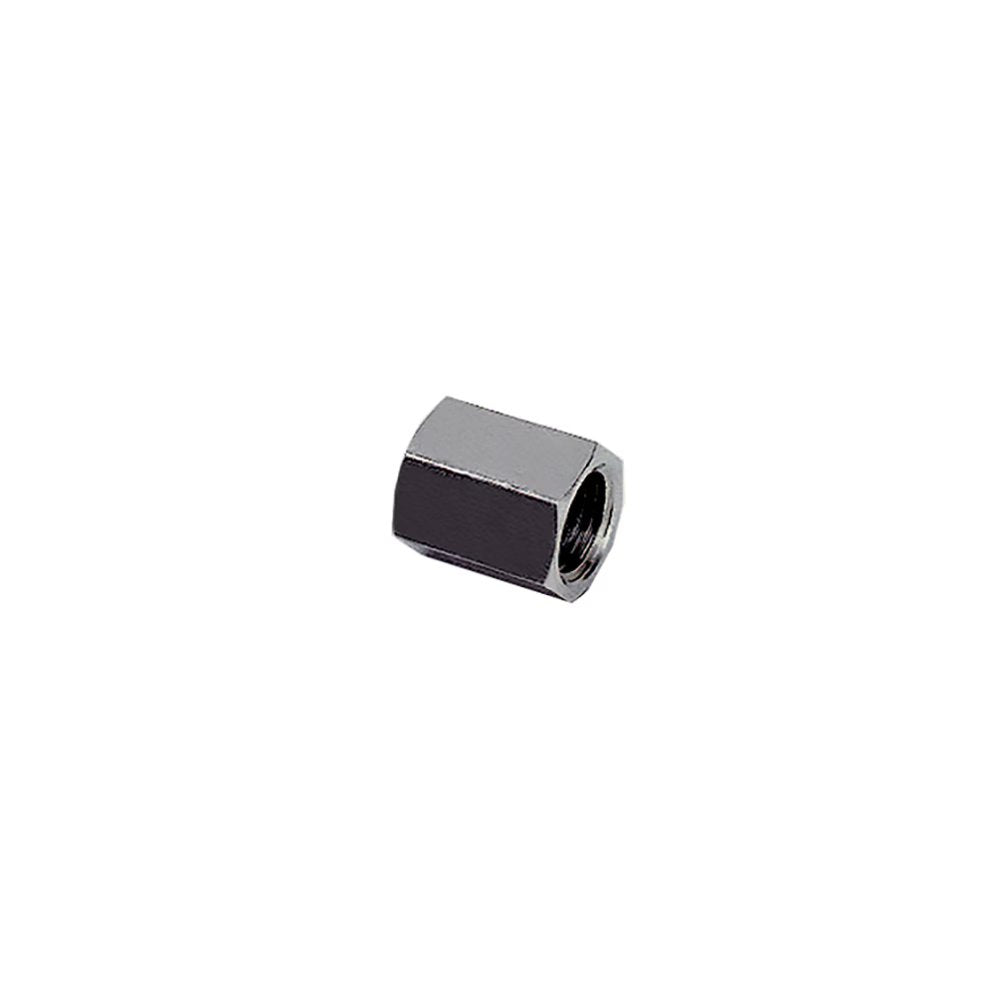

1862 21 17 by Parker | Legris Reducer Connector | 1/2" Female BSPP Thread x 3/8" Female BSPP Thread | 27 mm Length | 29 mm Hex | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Adapters:1862 Reducer Connector, Female BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $161.69 |
| 30–59 | $146.21 |
| 60+ | $129.01 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C1 | C2 | F | L | Kg |
| 1862 13 10 | 1/4" | 1/8" | 17 mm | 20.5 mm | .024 Kg |
| 1862 17 10 | 3/8" | 1/8" | 22 mm | 21 mm | .043 Kg |
| 1862 17 13 | 3/8" | 1/4" | 22 mm | 24.5 mm | .048 Kg |
| 1862 21 13 | 1/2" | 1/4" | 27 mm | 28.5 mm | .086 Kg |
| 1862 21 17 | 1/2" | 3/8" | 27 mm | 29 mm | .081 Kg |
| 1862 27 21 | 3/4" | 1/2" | 32 mm | 39.5 mm | .148 Kg |
| 1862 34 27 | 1" | 3/4" | 41 mm | 45 mm | .282 Kg |
