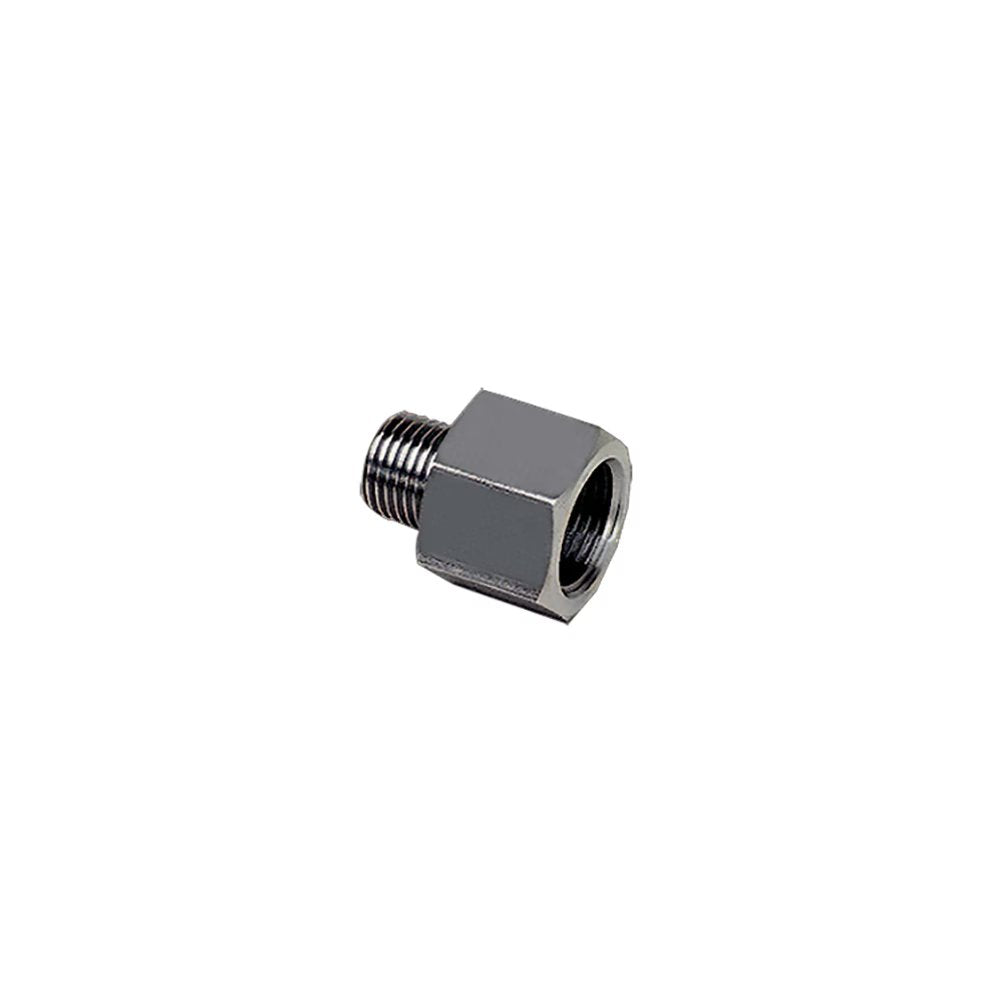

1861 27 34 by Parker | Legris Increaser | 3/4" Male BSPT Thread x 1" Female BSPP Thread | 41 mm Hex | 43.5 mm Length | Straight | 316L Stainless Steel
by Parker Hannifin
Stainless Steel Adapters:1861 Increaser, Male BSPT/Female BSPP Thread
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $105.25 |
| 30–59 | $95.17 |
| 60+ | $83.98 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | F | L | Kg |
| 1861 10 13 | 1/8" | 1/4" | 11 mm | 17 mm | 24 mm | .022 Kg |
| 1861 13 17 | 1/4" | 3/8" | 11.5 mm | 22 mm | 28.5 mm | .042 Kg |
| 1861 13 21 | 1/4" | 1/2" | 15 mm | 27 mm | 32.5 mm | .069 Kg |
| 1861 17 21 | 3/8" | 1/2" | 15 mm | 27 mm | 33 mm | .069 Kg |
| 1861 21 27 | 1/2" | 3/4" | 16.5 mm | 32 mm | 38 mm | .093 Kg |
| 1861 27 34 | 3/4" | 1" | 19 mm | 41 mm | 43.5 mm | .181 Kg |
