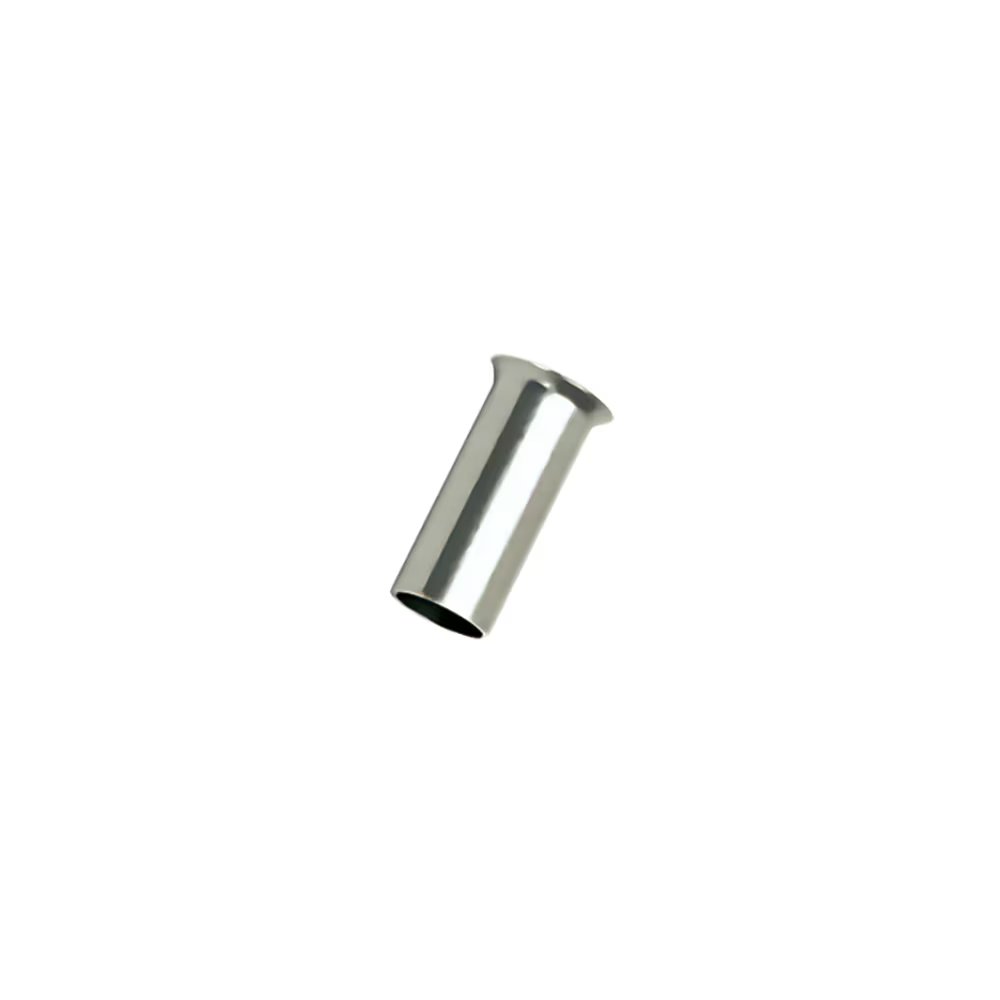

1827 10 00 by Parker | Tube Support | 10 mm Tube Size x 8 mm Tube ID | 18 mm Length | Straight | 316L Stainless Steel | Pack of 5

1827 10 00 by Parker | Tube Support | 10 mm Tube Size x 8 mm Tube ID | 18 mm Length | Straight | 316L Stainless Steel | Pack of 5

Sale price$55.55

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1827 Stainless Steel Tube Support for Fluoropolymer Tubing

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $52.22
40–79 $47.22
80+ $41.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1827 Series
Shape:

Straight

Material(s):
  • 316L Stainless Steel
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD1 ØD2 L Kg
1827 06 00 6 mm 4 mm 11.5 mm .001 Kg
1827 08 00 8 mm 6 mm 14 mm .001 Kg
1827 10 00 10 mm 8 mm 18 mm .001 Kg
1827 12 00 12 mm 10 mm 18 mm .001 Kg
1827 16 13 16 mm 13 mm 18 mm .002 Kg
1827 16 00 16 mm 14 mm 18 mm .002 Kg

This tube support is necessary when using fluoropolymer tubing at all temperatures compatible with the fitting/tubing assembly.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
