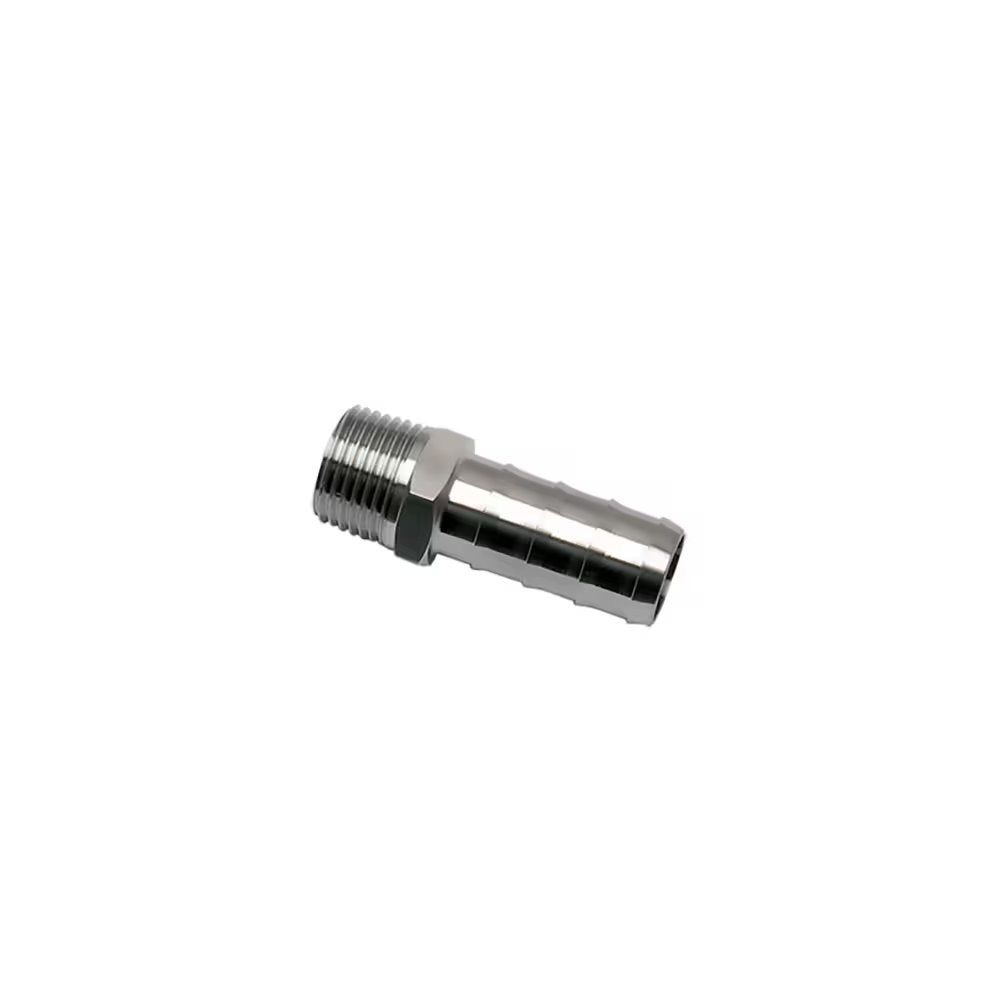

1823 16 21 by Parker | Legris Tailpipe Adapter for Rubber Hose | 18.5 mm Tube Size x 1/2" Male BSPT Thread | 22 mm Hex | 59 mm Length | Straight | 316L Stainless Steel | Pack of 2

1823 16 21 by Parker | Legris Tailpipe Adapter for Rubber Hose | 18.5 mm Tube Size x 1/2" Male BSPT Thread | 22 mm Hex | 59 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$165.17

by Parker Hannifin
Stainless Steel Adapters:1823 Tailpipe Adaptor for Rubber Hose, Male BSPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $155.26
30–59 $140.39
60+ $123.88
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1823 Series
Shape:

Straight

Ends Configuration:
  • 18.5mm Hose Barb
  • 1/2in Male BSPT
Adapters and Manifolds:
Part Number ØD ØD1 C F L L1 ØT Kg
1823 07 10 7 mm 9 mm 1/8" 10 mm 34 mm 22.5 mm 5 mm .009 Kg
1823 07 13 7 mm 9 mm 1/4" 14 mm 38.5 mm 22.5 mm 6 mm .017 Kg
1823 10 13 10 mm 12.2 mm 1/4" 14 mm 38.5 mm 22.5 mm 7 mm .018 Kg
1823 10 17 10 mm 12.2 mm 3/8" 17 mm 39 mm 22.5 mm 9.5 mm .021 Kg
1823 13 17 13 mm 15 mm 3/8" 17 mm 46 mm 29.5 mm 11 mm .025 Kg
1823 16 21 16 mm 18.5 mm 1/2" 22 mm 59 mm 38 mm 14 mm .048 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
