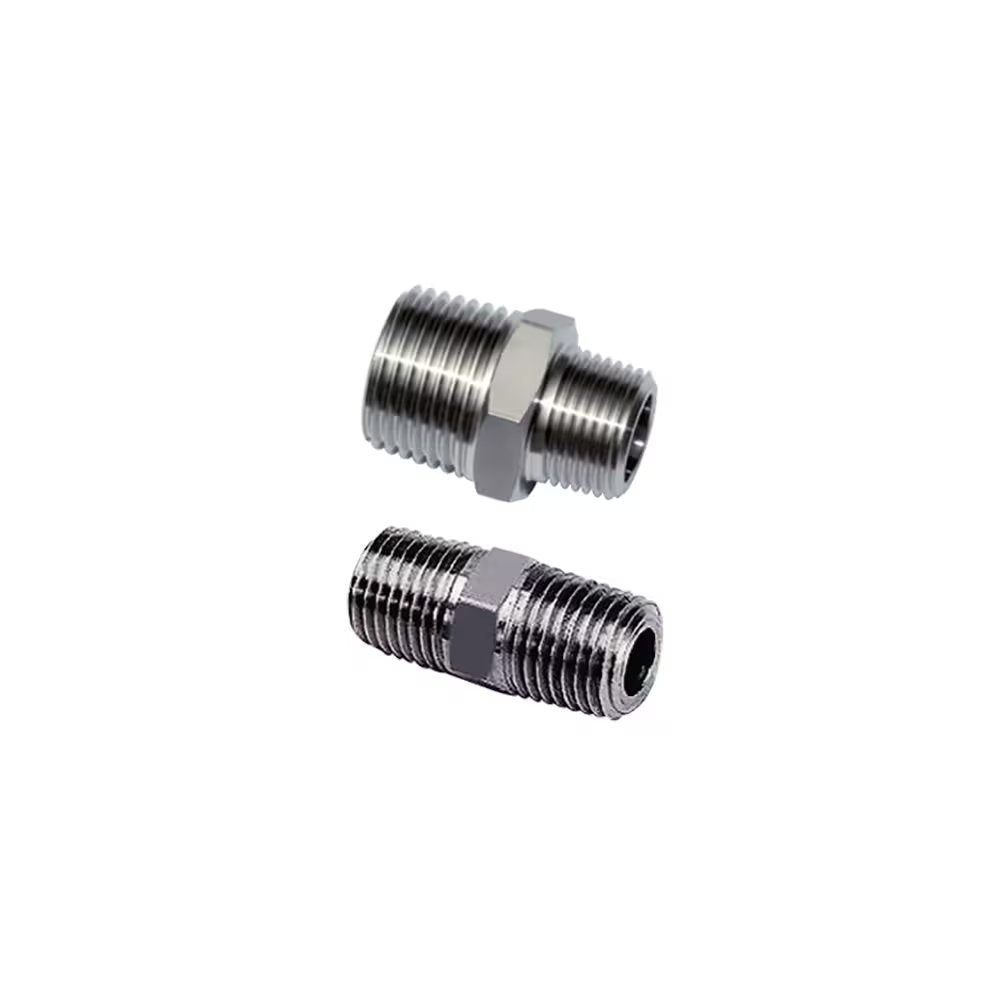

1821 10 10 by Parker | Legris Equal Adapter | 1/8" Male BSPT Thread | 12 mm Hex | 19 mm Length | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Adapters:1821 Equal and Unequal Adaptor, Male BSPT Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $64.85 |
| 40–79 | $58.64 |
| 80+ | $51.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
|||||
|---|---|---|---|---|---|
| Part Number | C1 | C2 | F | L | Kg |
| 1821 10 10 | 1/8" | 1/8" | 12 mm | 19 mm | .009 Kg |
| 1821 13 10 | 1/4" | 1/8" | 14 mm | 23.5 mm | .015 Kg |
| 1821 13 13 | 1/4" | 1/4" | 12 mm | 27 mm | .019 Kg |
| 1821 17 13 | 3/8" | 1/4" | 17 mm | 27.5 mm | .023 Kg |
| 1821 17 17 | 3/8" | 3/8" | 17 mm | 28 mm | .024 Kg |
| 1821 21 17 | 1/2" | 3/8" | 22 mm | 32.5 mm | .042 Kg |
| 1821 21 21 | 1/2" | 1/2" | 22 mm | 36 mm | .049 Kg |
| 1821 27 21 | 3/4" | 1/2" | 27 mm | 41 mm | .079 Kg |
| 1821 27 27 | 3/4" | 3/4" | 27 mm | 42 mm | .088 Kg |
| 1821 34 27 | 1" | 3/4" | 36 mm | 46 mm | .141 Kg |
| 1821 34 34 | 1" | 1" | 36 mm | 48 mm | .147 Kg |
