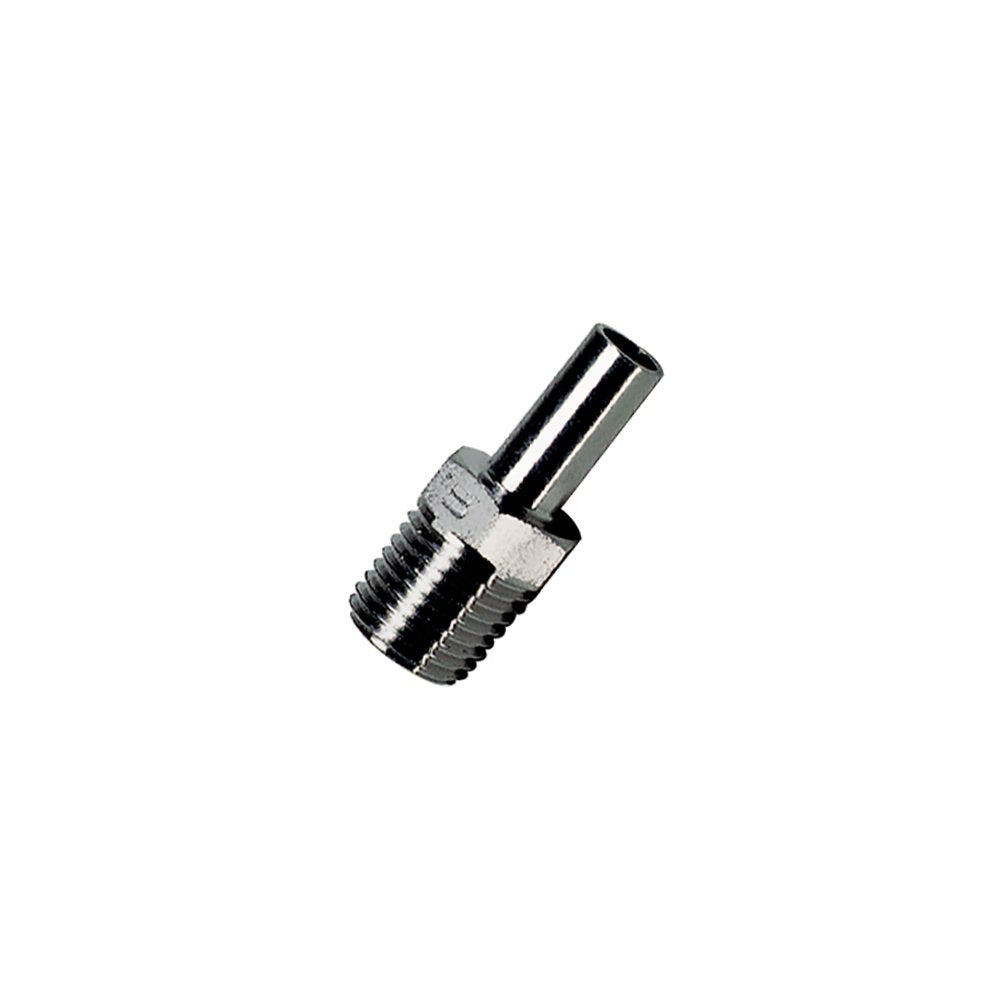

1820 08 13 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 33 mm Length | Straight | 316L Stainless Steel | Pack of 2

1820 08 13 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 33 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$74.47

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1820 Stud Standpipe, Male BSPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–39 $70.00
40–79 $63.30
80+ $55.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1820 Series
Shape:

Straight

Ends Configuration:
  • 8mm Tube Compression
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C F L L1 Kg
1820 06 10 6 mm 1/8" 12 mm 26.5 mm 15 mm .009 Kg
1820 06 13 6 mm 1/4" 14 mm 31 mm 15 mm .017 Kg
1820 08 10 8 mm 1/8" 12 mm 28.5 mm 17 mm .008 Kg
1820 08 13 8 mm 1/4" 14 mm 33 mm 17 mm .016 Kg
1820 10 21 10 mm 1/2" 22 mm 41 mm 20 mm .052 Kg
