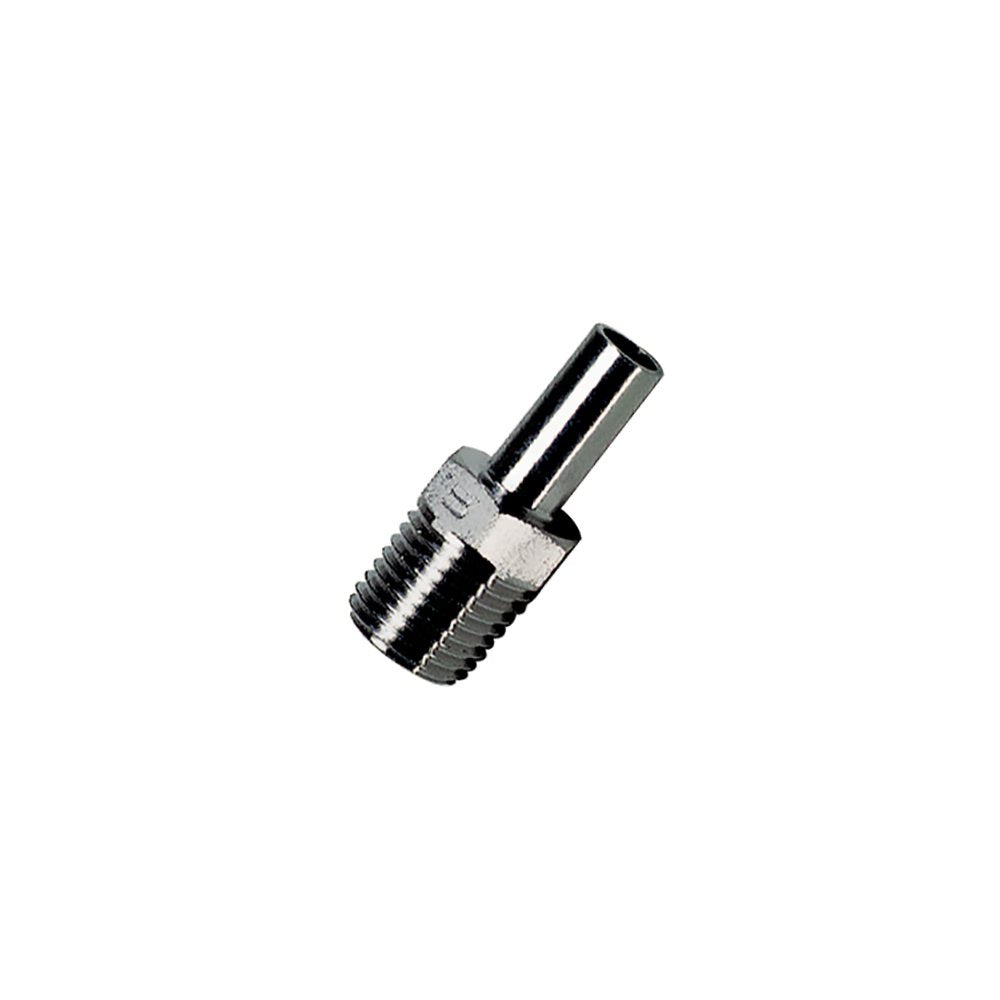

1820 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 12 mm Hex | 28.5 mm Length | 316L Stainless Steel | Pack of 2

1820 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 12 mm Hex | 28.5 mm Length | 316L Stainless Steel | Pack of 2

Sale price$78.95

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1820 Stem Adaptor, Male NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $74.21
30–59 $67.11
60+ $59.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1820 Series
Shape:

Straight

Ends Configuration:
  • 8mm Tube Compression
  • 1/8in Male NPT
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C F L L1 Kg
1820 08 11 8 mm 1/8" 12 mm 28.5 mm 17 mm .009 Kg
1820 08 14 8 mm 1/4" 14 mm 33 mm 17 mm .019 Kg
1820 10 14 10 mm 1/4" 14 mm 36 mm 20 mm .018 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
