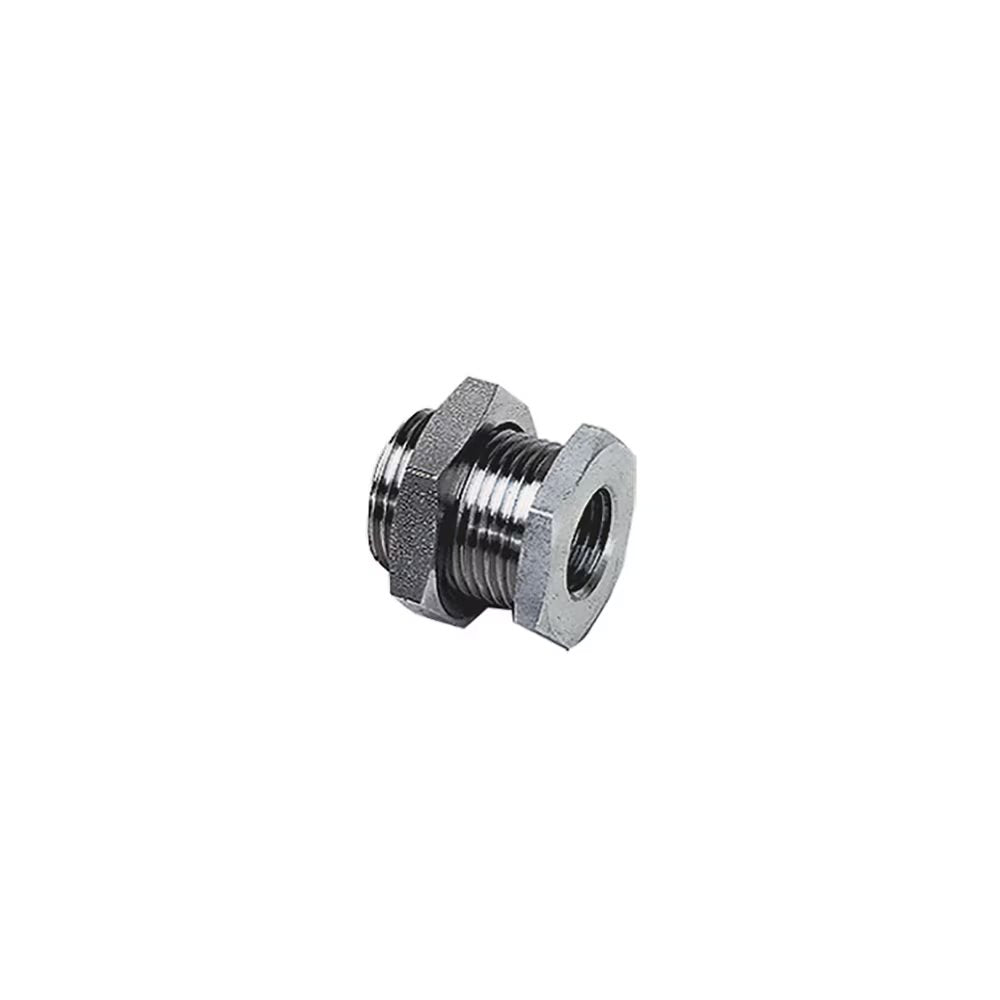

1817 00 34 by Parker | Legris Equal Bulkhead | 1" Female BSPP Thread | 46 mm Hex (F) | 50 mm Hex (F1) | 42 mm Length | Straight | 316L Stainless Steel
by Parker Hannifin
Stainless Steel Adapters:1817 Equal Bulkhead Adaptor, Female BSPP Thread
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $162.20 |
| 30–59 | $146.67 |
| 60+ | $129.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C | F | F1 | K (max) | L | L1 | ØT (min) | Kg |
| 1817 00 10 | 1/8" | 19 mm | 22 mm | 9 mm | 14 mm | 4 mm | 16.5 mm | .031 Kg |
| 1817 00 13 | 1/4" | 24 mm | 27 mm | 15 mm | 21 mm | 4 mm | 20.5 mm | .053 Kg |
| 1817 00 17 | 3/8" | 30 mm | 32 mm | 14 mm | 21 mm | 5 mm | 26.5 mm | .089 Kg |
| 1817 00 21 | 1/2" | 32 mm | 36 mm | 20 mm | 27 mm | 6 mm | 28.5 mm | .108 Kg |
| 1817 00 27 | 3/4" | 41 mm | 41 mm | 22.5 mm | 30 mm | 6 mm | 34.5 mm | .152 Kg |
| 1817 00 34 | 1" | 46 mm | 50 mm | 24.5 mm | 34 mm | 8 mm | 42.5 mm | .253 Kg |
