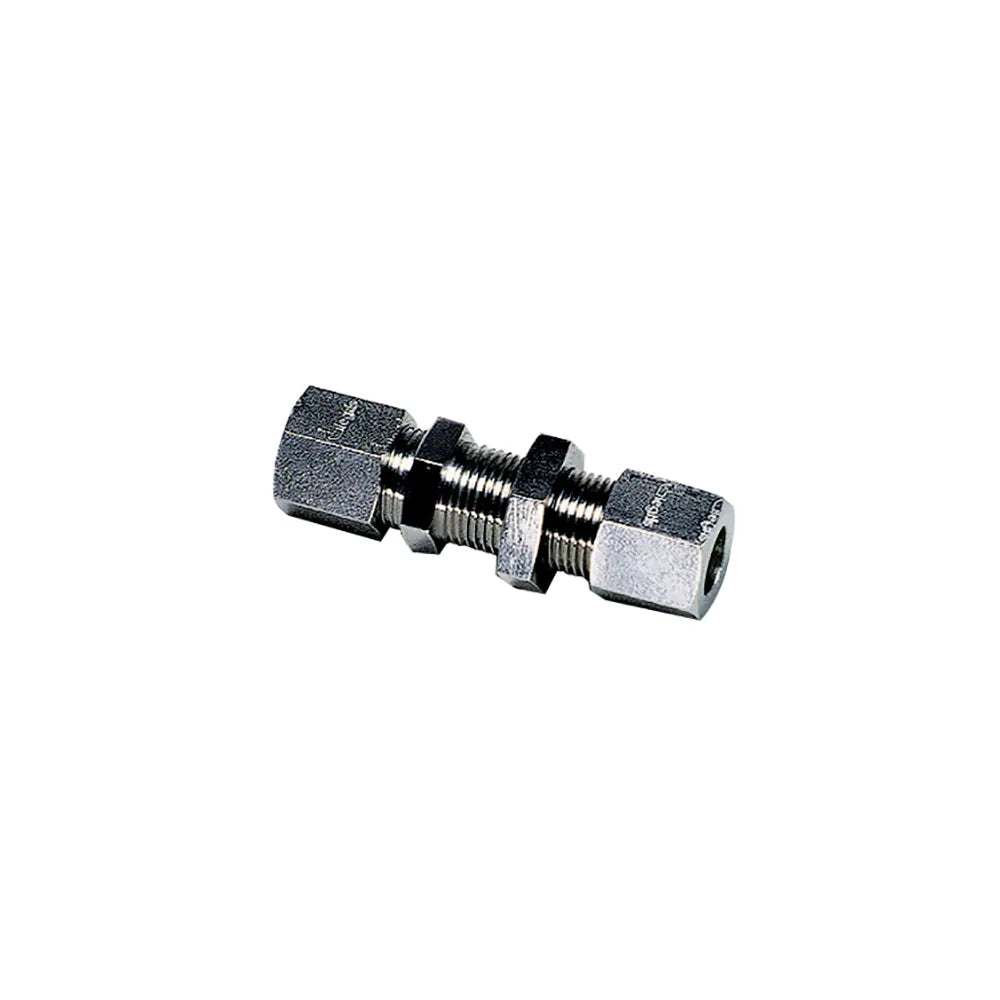

1816 08 00 by Parker | Legris Bulkhead Connector | 8mm Tube Size x 8mm Tube Size | 14mm Hex (F) | 14mm Hex (F1) | 49mm Length | Straight | 316L Stainless Steel | Pack of 2

1816 08 00 by Parker | Legris Bulkhead Connector | 8mm Tube Size x 8mm Tube Size | 14mm Hex (F) | 14mm Hex (F1) | 49mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$267.68

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1816 Equal Bulkhead Connector

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $251.62
15–29 $227.53
30+ $200.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1816 Series
Shape:

Straight

Ends Configuration:
  • 8mm Tube Compression
  • 8mm Tube Compression
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD F F1 L (max) L1 (max) L2 L3 ØT (min) Kg
1816 08 00 8 mm 14 mm 14 mm 29 mm 20 mm 7.5 mm 17 mm 10.5 mm .034 Kg
1816 10 00 10 mm 19 mm 19 mm 33 mm 25 mm 9 mm 19 mm 16.5 mm .093 Kg
