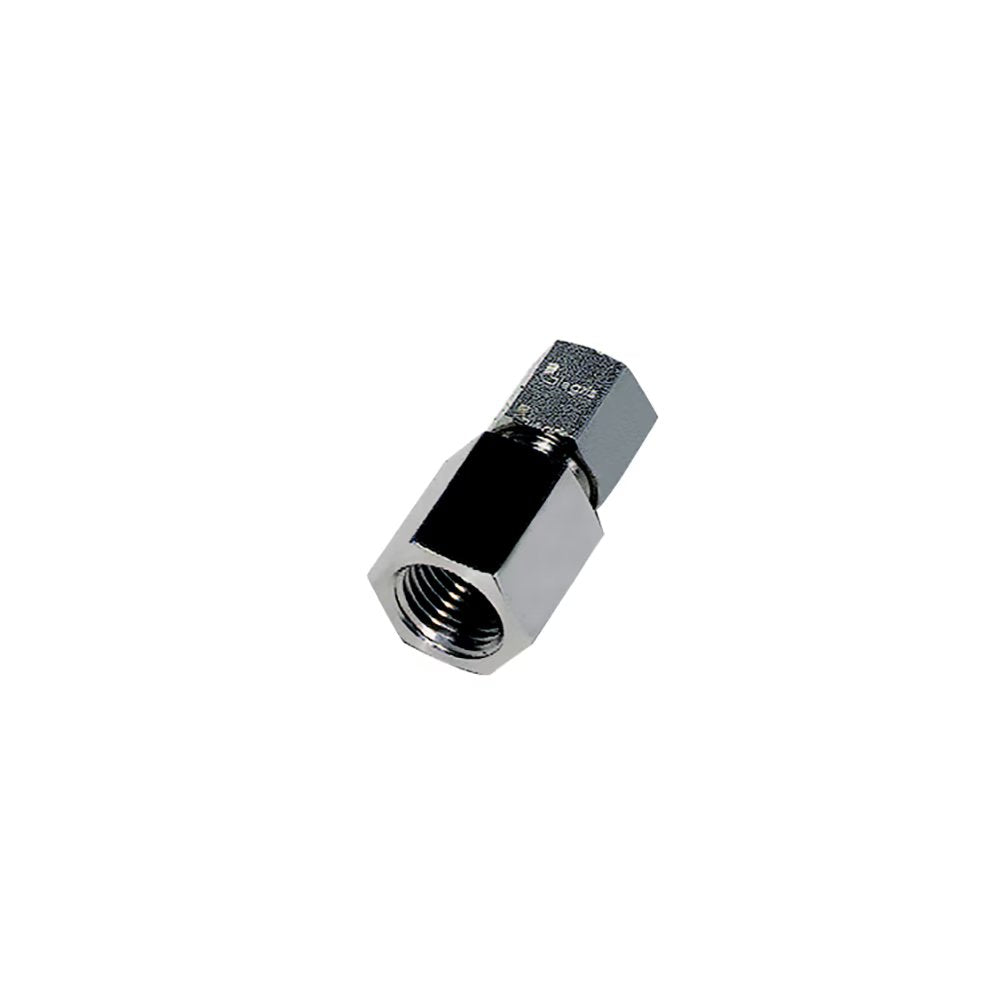

1814 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Female BSPP Thread | 17 mm Hex (F) | 13 mm Hex (F1) | 29 mm Length | Straight | 316L Stainless Steel | Pack of 2

1814 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Female BSPP Thread | 17 mm Hex (F) | 13 mm Hex (F1) | 29 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$216.58

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1814 Stud Fitting, Female BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $203.59
30–59 $184.09
60+ $162.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1814 Series
Shape:

Straight

Ends Configuration:
  • 6mm Tube Compression
  • 1/4in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C E F F1 H (max) H1 Kg
1814 06 10 6 mm 1/8" 7 mm 14 mm 13 mm 29 mm 17 mm .024 Kg
1814 06 13 6 mm 1/4" 11 mm 17 mm 13 mm 29 mm 21 mm .031 Kg
1814 08 13 8 mm 1/4" 11 mm 17 mm 14 mm 34.5 mm 20.5 mm .033 Kg
1814 12 21 12 mm 1/2" 15 mm 27 mm 22 mm 43.5 mm 26.5 mm .121 Kg
