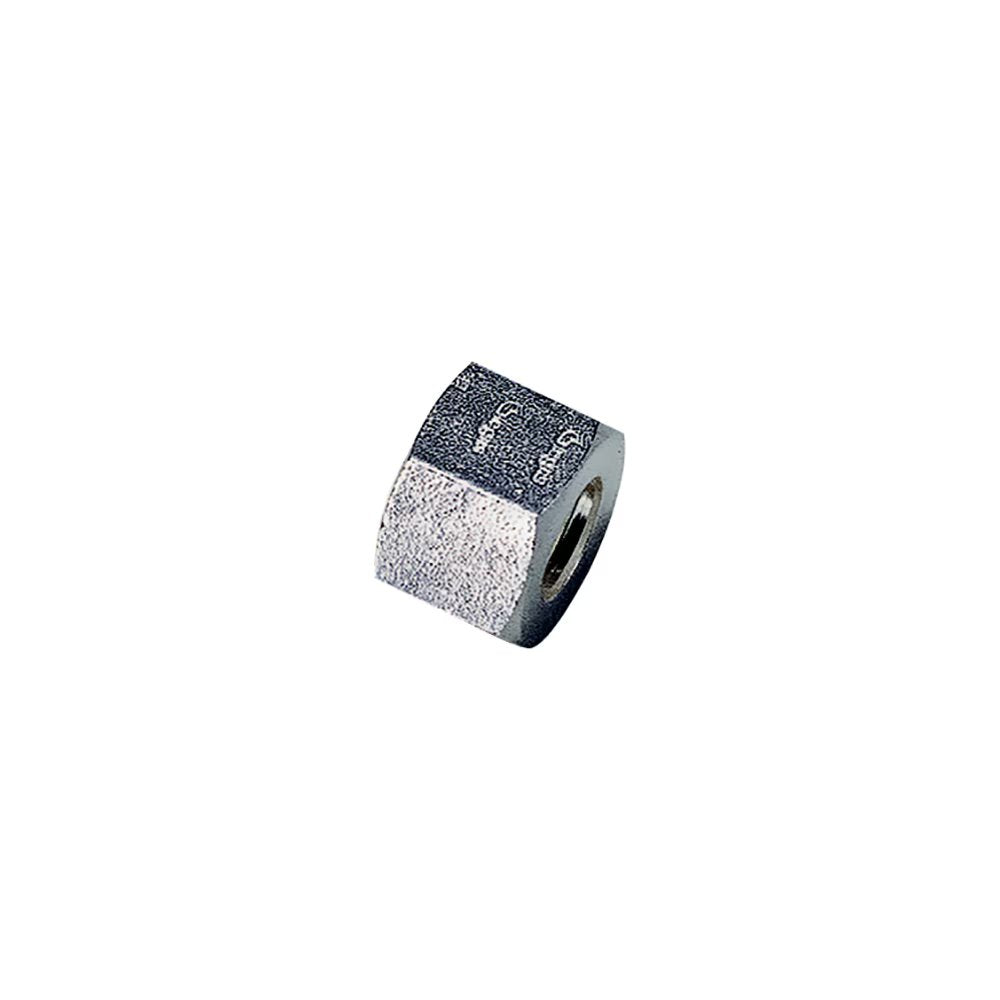

1810 06 00 by Parker | Complementary Fittings | 6 mm Nut x M10x1 Thread | 13 mm Hex | 11 mm Length | Straight | 316L Stainless Steel | Pack of 5

1810 06 00 by Parker | Complementary Fittings | 6 mm Nut x M10x1 Thread | 13 mm Hex | 11 mm Length | Straight | 316L Stainless Steel | Pack of 5

Sale price$127.68

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1810 Stainless Steel Nut

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $120.02
30–59 $108.53
60+ $95.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1810 Series
Shape:

Straight

Material(s):
  • 316L Stainless Steel
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C F L Kg
1810 06 00 6 mm M10x1 13 mm 11 mm .007 Kg
1810 08 00 8 mm M12x1 14 mm 13 mm .008 Kg
1810 10 00 10 mm M16x1.5 19 mm 15 mm .017 Kg
1810 12 00 12 mm M18x1.5 22 mm 15 mm .024 Kg
