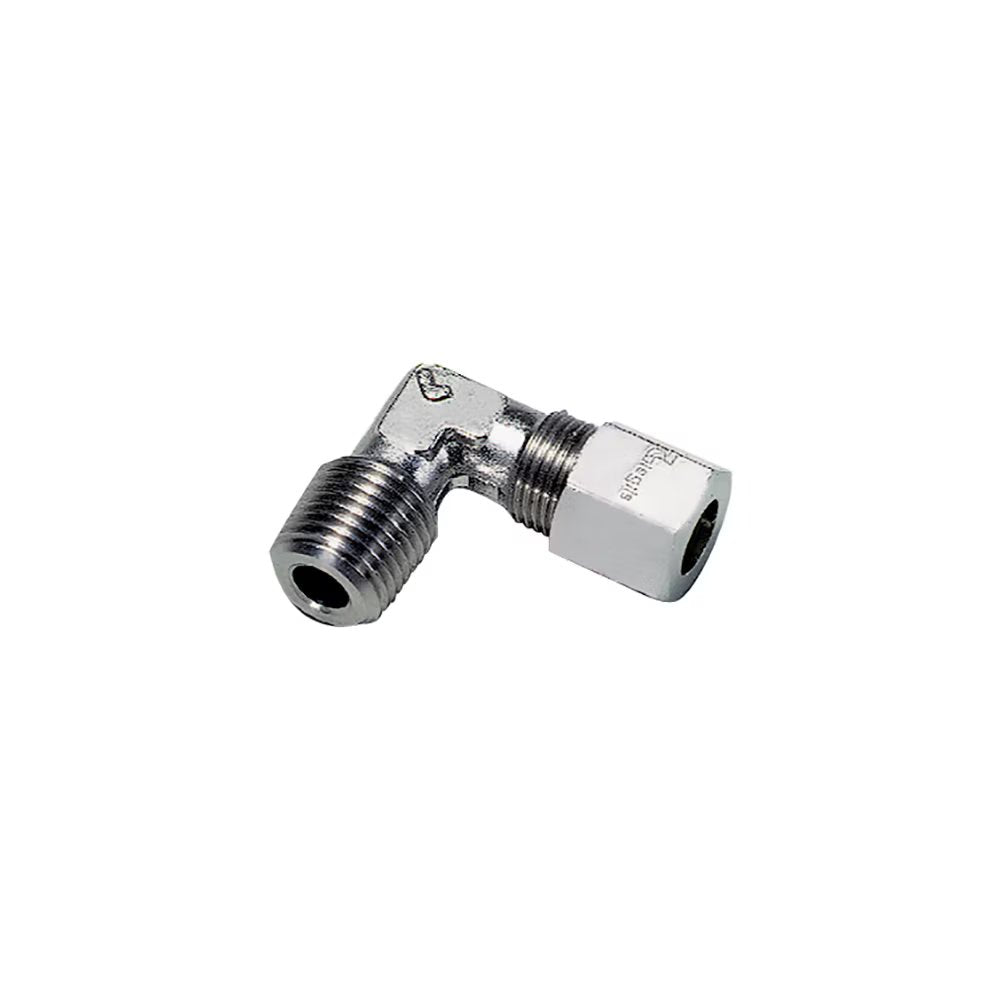

1809 12 22 by Parker | Legris Stud Fitting | 12 mm Tube Size x 1/2" Male NPT Thread | 22 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1809 Stud Elbow, Male NPT Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $252.08 |
| 15–29 | $227.94 |
| 30+ | $201.13 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | H | J | L (max) | L1 | Kg |
| 1809 08 11 | 8 mm | 1/8" | 14 mm | 22 mm | 10 mm | 28.5 mm | 14.5 mm | .027 Kg |
| 1809 08 14 | 8 mm | 1/4" | 14 mm | 25.5 mm | 10 mm | 28.5 mm | 14.5 mm | .032 Kg |
| 1809 10 14 | 10 mm | 1/4" | 19 mm | 27.5 mm | 12 mm | 32.5 mm | 16 mm | .053 Kg |
| 1809 10 18 | 10 mm | 3/8" | 19 mm | 28 mm | 12 mm | 32.5 mm | 16 mm | .060 Kg |
| 1809 10 22 | 10 mm | 1/2" | 19 mm | 35 mm | 18 mm | 36.5 mm | 20 mm | .096 Kg |
| 1809 12 22 | 12 mm | 1/2" | 22 mm | 35 mm | 18 mm | 37 mm | 20 mm | .101 Kg |
