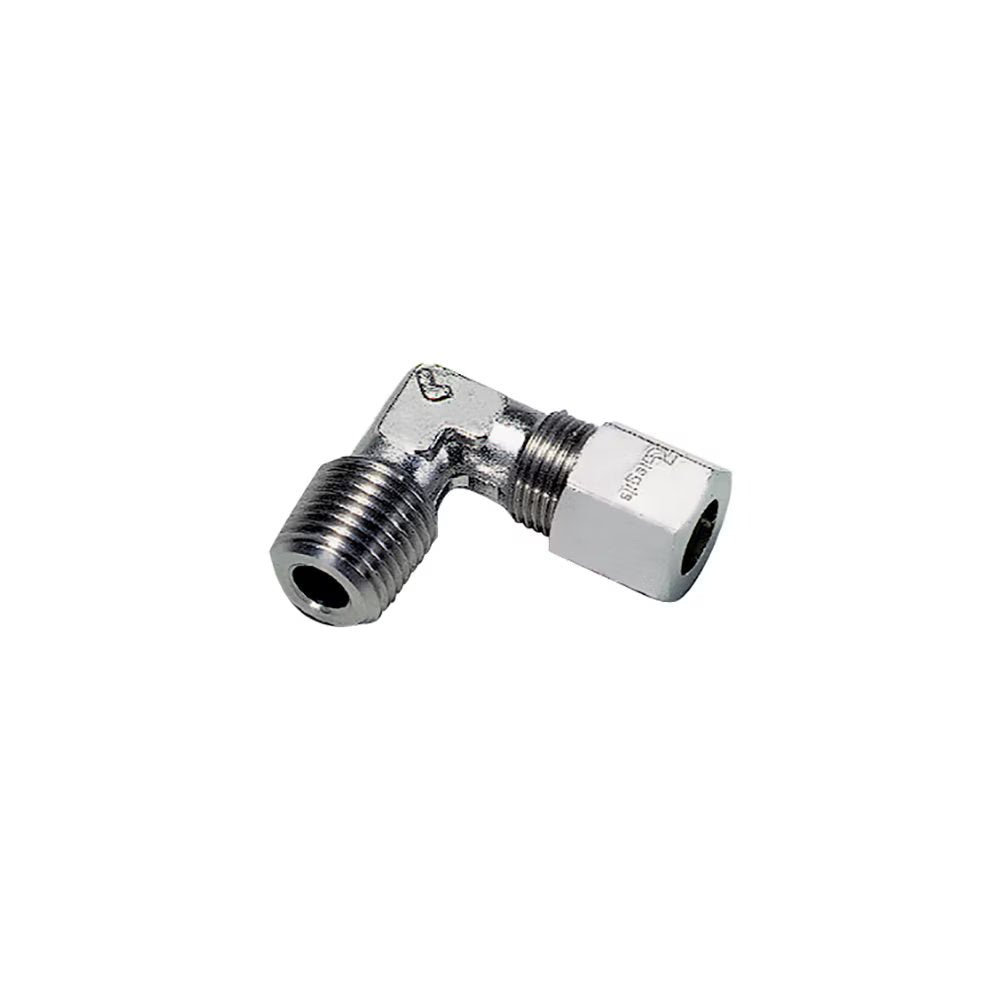

1809 08 10 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | 14 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

1809 08 10 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | 14 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Sale price$138.02

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1809 Stud Elbow, Male BSPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $129.74
30–59 $117.32
60+ $103.52
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1809 Series
Shape:

90° Elbow

Ends Configuration:
  • 8mm Tube Compression
  • 1/8in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C F H J L (max) L1 Kg
1809 06 10 6 mm 1/8" 13 mm 18 mm 8 mm 25.5 mm 13.5 mm .020 Kg
1809 06 13 6 mm 1/4" 13 mm 23 mm 10 mm 25.5 mm 13.5 mm .029 Kg
1809 08 10 8 mm 1/8" 14 mm 20.5 mm 20 mm 28.5 mm 14.5 mm .026 Kg
1809 08 13 8 mm 1/4" 14 mm 23 mm 10 mm 28.5 mm 14.5 mm .030 Kg
1809 12 17 12 mm 3/8" 22 mm 27 mm 14 mm 34 mm 17 mm .070 Kg
