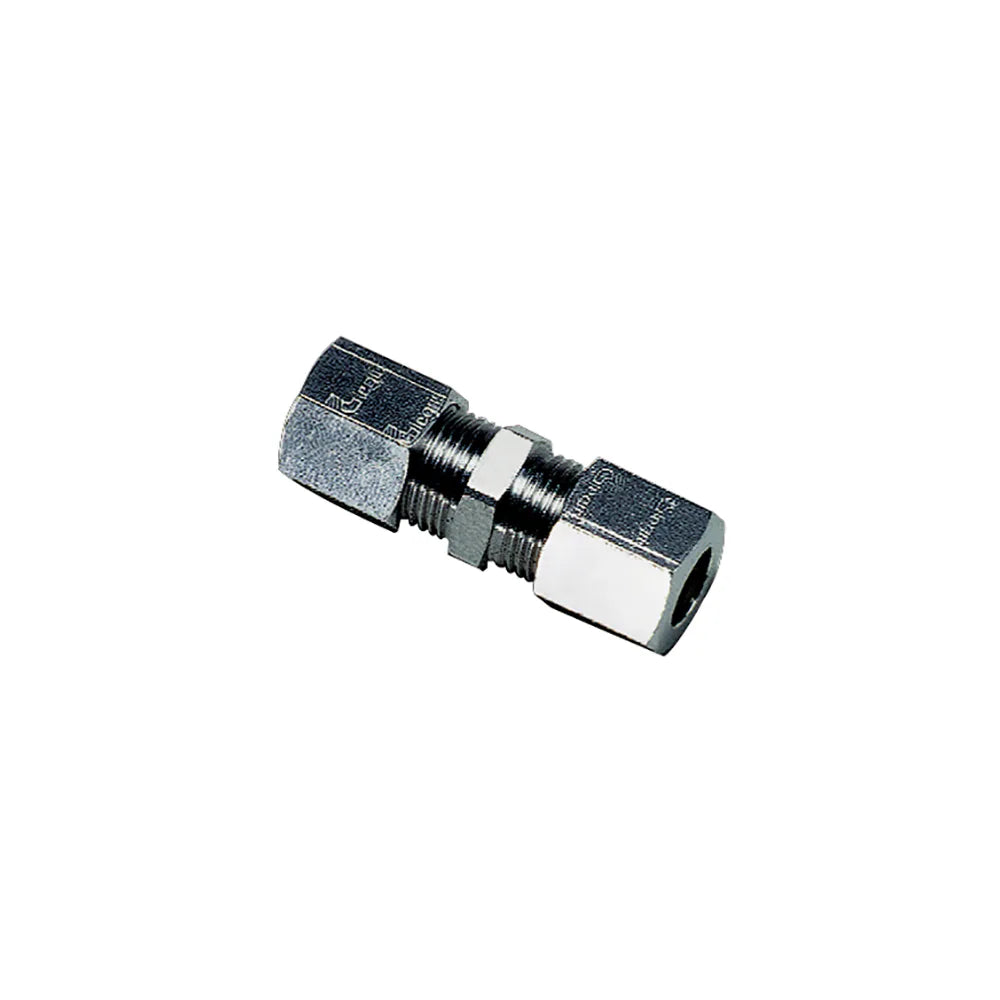

1806 10 00 by Parker | Legris Tube-to-Tube Connector | 10 mm Tube Size x 10 mm Tube Size | 17 mm Hex (F) | 19 mm Hex (F1) | 46 mm Length | Straight | 316L Stainless Steel | Pack of 2

1806 10 00 by Parker | Legris Tube-to-Tube Connector | 10 mm Tube Size x 10 mm Tube Size | 17 mm Hex (F) | 19 mm Hex (F1) | 46 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$218.95
Quantity Price Each
30–59 $197.06
60+ $175.16
Discounts applied at checkout.

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1806 Equal Tube-to-Tube Connector

Package Quantity: 2 Units

Product Data:

Series:
  • 1806 Series
Shape:

Straight

Ends Configuration:
  • 10mm Tube Compression
  • 10mm Tube Compression
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD F F1 L (max) L1 Kg
1806 06 00 6 mm 12 mm 13 mm 34.5 mm 11 mm .025 Kg
1806 08 00 8 mm 13 mm 14 mm 38.5 mm 10 mm .029 Kg
1806 10 00 10 mm 17 mm 19 mm 46 mm 13 mm .065 Kg
1806 12 00 12 mm 19 mm 22 mm 47 mm 13 mm .085 Kg
