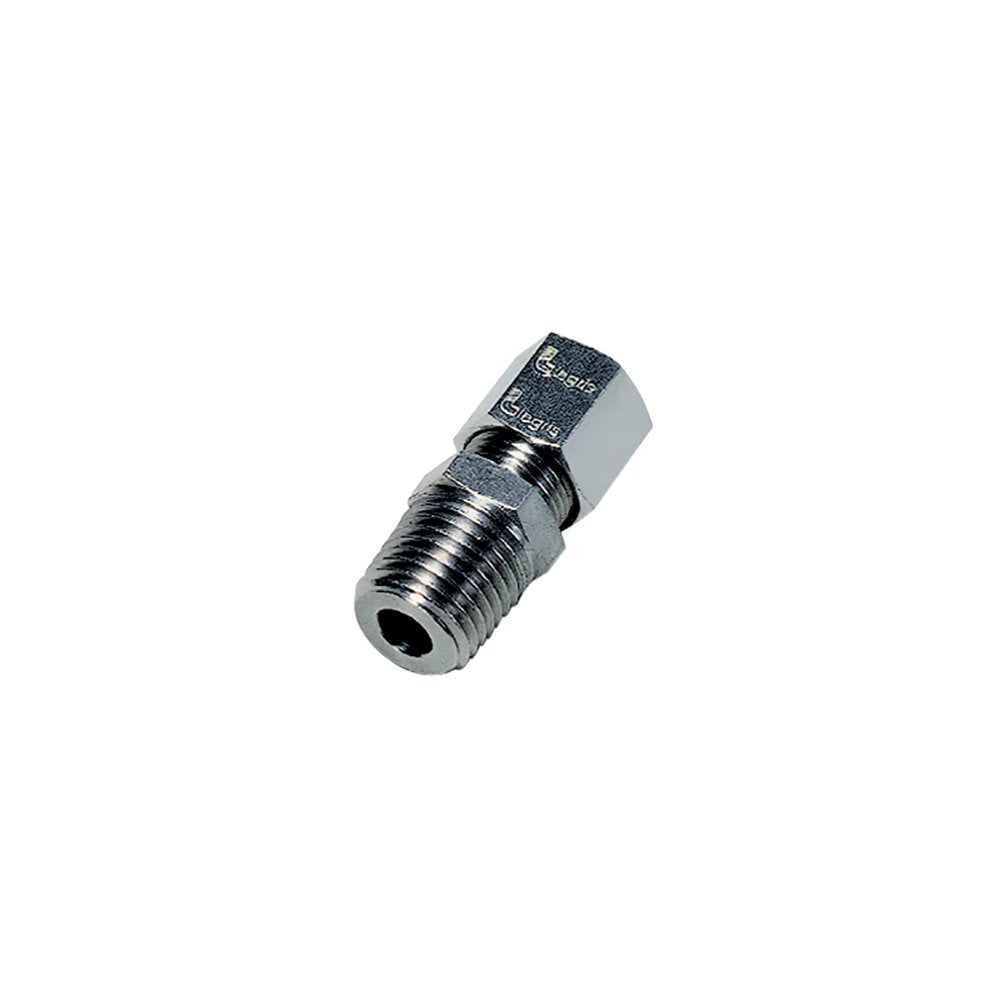

1805 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex (F) | 13 mm Hex (F1) | Straight | 316L Stainless Steel | Pack of 2

1805 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex (F) | 13 mm Hex (F1) | Straight | 316L Stainless Steel | Pack of 2

Sale price$97.32

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1805 Stud Fitting, Male BSPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $91.48
30–59 $82.72
60+ $72.99
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1805 Series
Shape:

Straight

Ends Configuration:
  • 6mm Tube Compression
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD C F F1 H (max) H1 Kg
1805 06 10 6 mm 1/8" 12 mm 13 mm 19.5 mm 7.5 mm .017 Kg
1805 06 13 6 mm 1/4" 14 mm 13 mm 19.5 mm 7.5 mm .025 Kg
1805 08 10 8 mm 1/8" 13 mm 14 mm 21 mm 7 mm .019 Kg
1805 08 13 8 mm 1/4" 14 mm 14 mm 21 mm 7 mm .024 Kg
1805 10 13 10 mm 1/4" 17 mm 19 mm 25.5 mm 9 mm .043 Kg
1805 10 17 10 mm 3/8" 17 mm 19 mm 25.5 mm 9 mm .049 Kg
1805 10 21 10 mm 1/2" 22 mm 19 mm 26.5 mm 10 mm .076 Kg
1805 12 13 12 mm 1/4" 19 mm 22 mm 26 mm 9 mm .054 Kg
1805 12 17 12 mm 3/8" 19 mm 22 mm 26 mm 9 mm .057 Kg
1805 12 21 12 mm 1/2" 22 mm 22 mm 27 mm 10 mm .081 Kg
