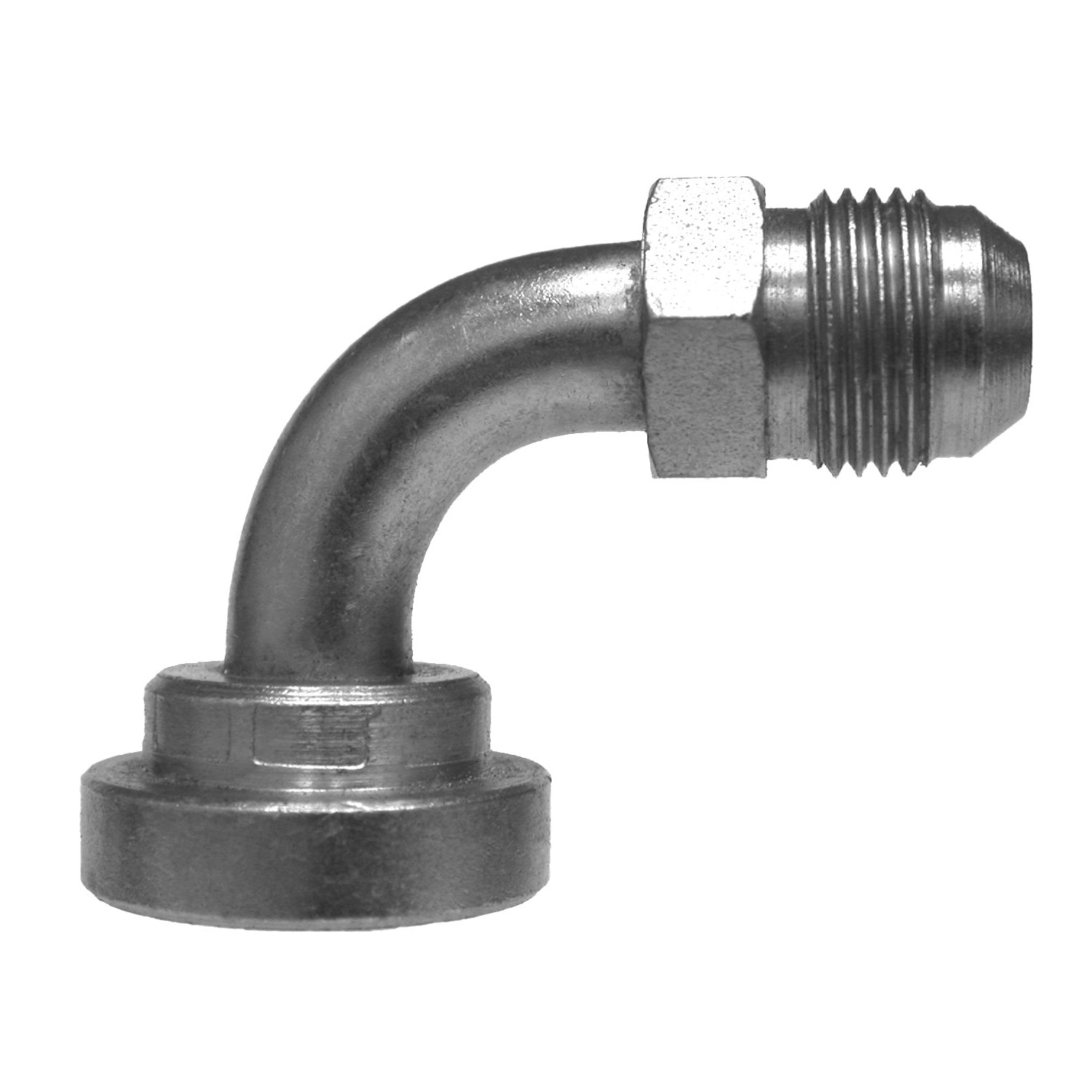

18041212 by Midland | Hydraulic Flange | 1-1/16-12 Male JIC 37° Flare x 3/4" Flange Size | Code 62 | 90° Elbow | Adapter | Steel
Midland Industries
Hydraulic Flang Adapter: Code 62 90° JIC Flange Adapter - Steel
6000 PSI
Conforms to SAE J518.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $39.14 |
| 40–79 | $35.39 |
| 80+ | $31.23 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: |
|---|
| 6842 |
 |
|||
|---|---|---|---|
| Part Number | Male JIC 37° Flare (1) |
Male JIC 37° Flare Thread (1) |
Flange Size (2) |
| 180488 | 1/2" | 3/4-16 | 1/2" |
| 18041212 | 3/4" | 1-1/16-12 | 3/4" |
| 18041216 | 3/4" | 1-1/16-12 | 1" |
| 18041220 | 3/4" | 1-1/16-12 | 1-1/4" |
| 18041612 | 1" | 1-5/16-12 | 3/4" |
| 18041616 | 1" | 1-5/16-12 | 1" |
| 18041624 | 1" | 1-5/16-12 | 1-1/2" |
| 18042016 | 1-1/4" | 1-5/8-12 | 1" |
| 18042020 | 1-1/4" | 1-5/8-12 | 1-1/4" |
| 18042024 | 1-1/4" | 1-5/8-12 | 1-1/2" |
| 18042420 | 1-1/2" | 1-7/8-12 | 1-1/4" |
| 18042424 | 1-1/2" | 1-7/8-12 | 1-1/2" |
| 18043232 | 2" | 2-1/2-12 | 2" |
