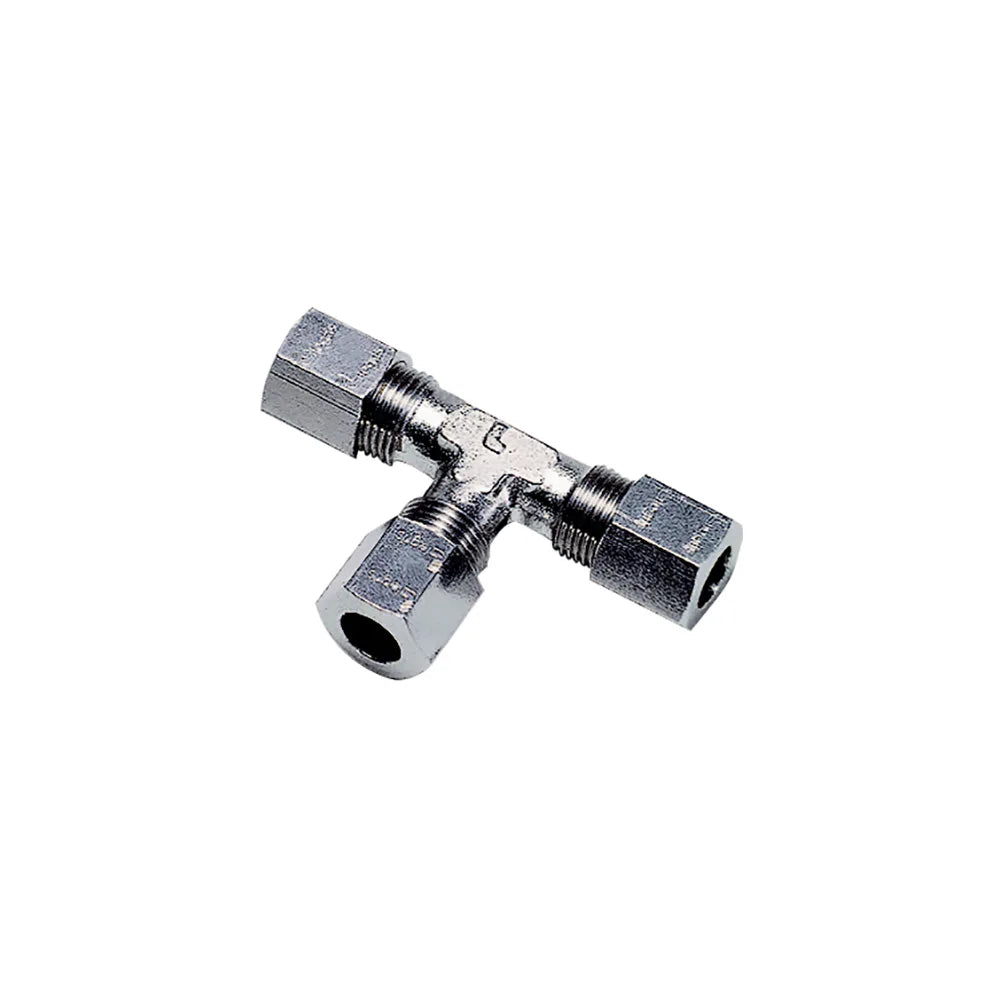

1804 06 00 by Parker | Legris Tube-to-Tube Fitting | 6 mm Equal Tube Size | 13 mm Hex | 51 mm Length | Tee | 316L Stainless Steel | Pack of 2

1804 06 00 by Parker | Legris Tube-to-Tube Fitting | 6 mm Equal Tube Size | 13 mm Hex | 51 mm Length | Tee | 316L Stainless Steel | Pack of 2

Sale price$248.40

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1804 Equal Tee

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $233.50
30–59 $211.14
60+ $186.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1804 Series
Shape:

Tee

Ends Configuration:
  • 6mm Tube Compression
  • 6mm Tube Compression
  • 6mm Tube Compression
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments)
  • Working Temperature: -60°C to +250°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (95% vacuum).
      Thread sealing must be guaranteed by user.
Advantages:
  • Excellent sealing and retention of the tube
  • Metallic sealing guarantees maximum service life
  • Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ...
  • No tube support required for rigid and semi-rigid polyamide tubing below 12 mm
  • Connection of several pipe diameters thanks to the Parker Legris assembly reduction system
  • Range of associated accessories in 316L Stainless Steel
Regulations:
  • RoHS
  • PED
  • REACH
  • 1935/2004
Component Materials:
  • Stem Adapter: Stainless Steel
  • Body: Stainless Steel
  • Nut: Stainless Steel
  • Olive: Stainless Steel
  • Reducer: Stainless Steel
  • Reducing Nut: Stainless Steel
  • Tube: Fluoropolymer (FEP or PFA) and Stainless Steel
Part Number ØD F J L/2 L1 Kg
1804 06 00 6 mm 13 mm 8 mm 25.5 mm 13.5 mm .039 Kg
1804 08 00 8 mm 14 mm 10 mm 28.5 mm 14.5 mm .049 Kg
1804 10 00 10 mm 19 mm 12 mm 32.5 mm 16 mm .100 Kg
