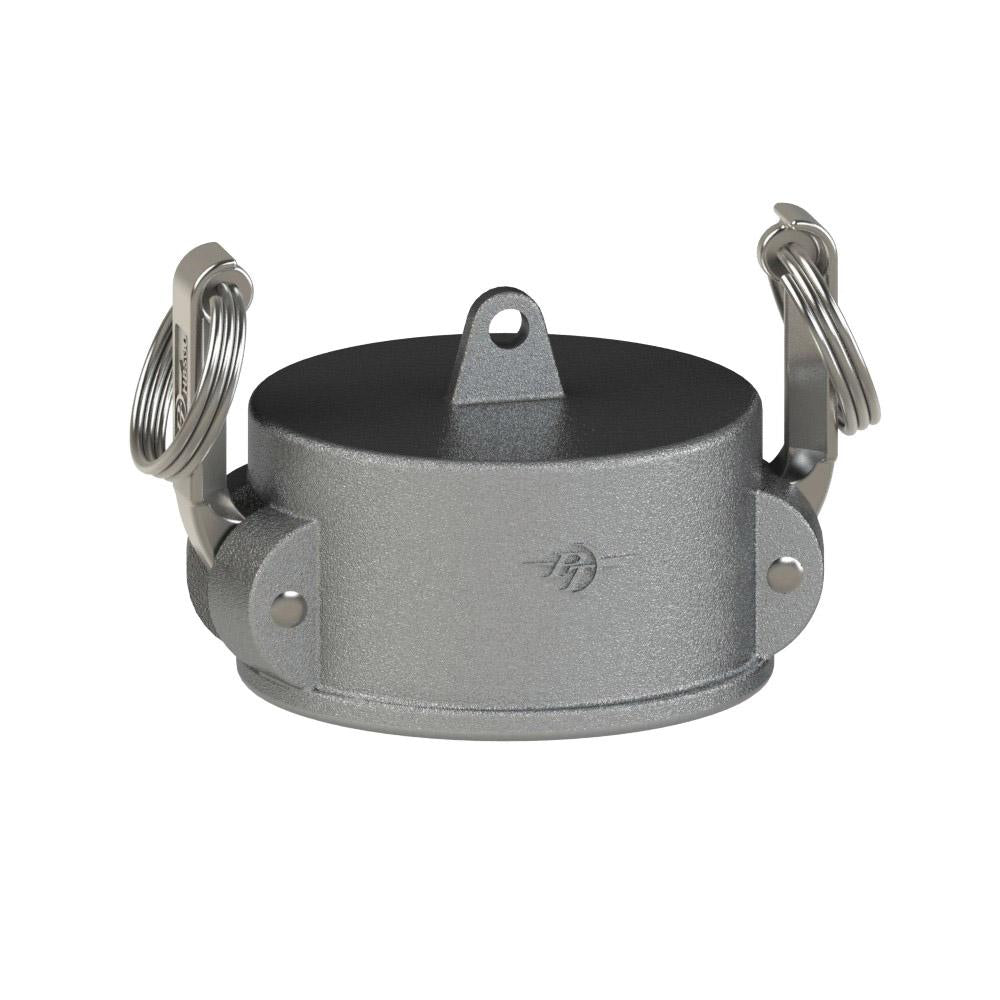

1801140 (40V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 4" Coupler | Ductile Iron

1801140 (40V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 4" Coupler | Ductile Iron

Sale price$83.73

PT Coupling
Cam and Groove (Camlock) Dust Cap | Type V | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $78.71
20–59 $71.17
60+ $62.80
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 4in Female Cam & Groove
Material(s):
  • Ductile Iron
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*

E05V 1801101 1/2" 4.21" 1.82" 1.30" 0.50" 1.03" 250 PSI

07V 1801107 3/4" 4.51" 2.11" 1.35" 0.50" 0.97" 250 PSI

10V 1801110 1" 5.10" 2.44" 1.60" 0.62" 1.19" 250 PSI

12V 1801112 1-1/4" 6.86" 3.26" 1.89" 0.60" 1.44" 250 PSI

15V 1801115 1-1/2" 7.16" 3.56" 1.96" 0.86" 1.48" 250 PSI

20V 1801120 2" 7.54" 3.94" 2.25" 0.76" 1.75" 250 PSI

25V 1801125 2-1/2" 8.03" 4.43" 2.28" 0.90" 1.75" 200 PSI

30V 1801130 3" 9.56" 5.46" 2.27" 1.03" 1.84" 200 PSI

40V 1801140 4" 10.66" 6.56" 2.34" 0.99" 1.87" 150 PSI

50V 1801150 5" 11.67" 7.57" 2.44" 1.15" 1.97" 75 PSI

60V 1801160 6" 16.26" 10.16" 2.76" 1.14" 2.19" 75 PSI

80V 1801180** 8" 18.23" 12.13" 2.72" 1.18" 2.15" 50 PSI

** 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
