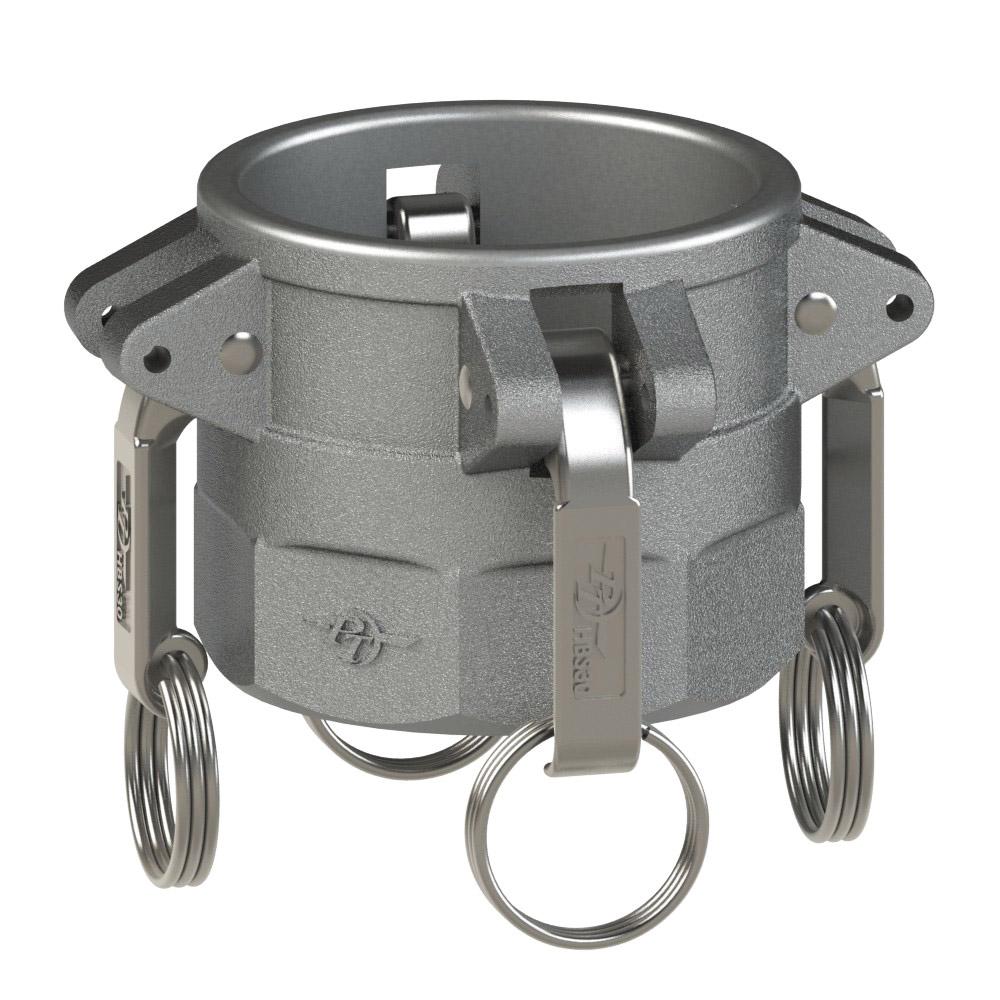

18004404CM (40DHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type DHD | 4" Coupler x 4" Female NPT | Ductile Iron | Buna-N Seal
PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type DHD | Coupler x Female NPT | Ductile Iron | Buna-N Seal
Ideal for use with sand, grout, cement, and other abrasives.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $257.62 |
| 15–29 | $232.95 |
| 30+ | $205.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Heavy Duty Coupler |
Female NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15DHD | 68781500 | 1-1/2" | 1-1/2" | 500 PSI |
| 20DHD | 68782000 | 2" | 2" | 500 PSI |
| 25DHD | 68782500 | 2-1/2" | 2-1/2" | 400 PSI |
| 30DHD | 18004304CM | 3" | 3" | 400 PSI |
| 40DHD | 18004404CM | 4" | 4" | 300 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
