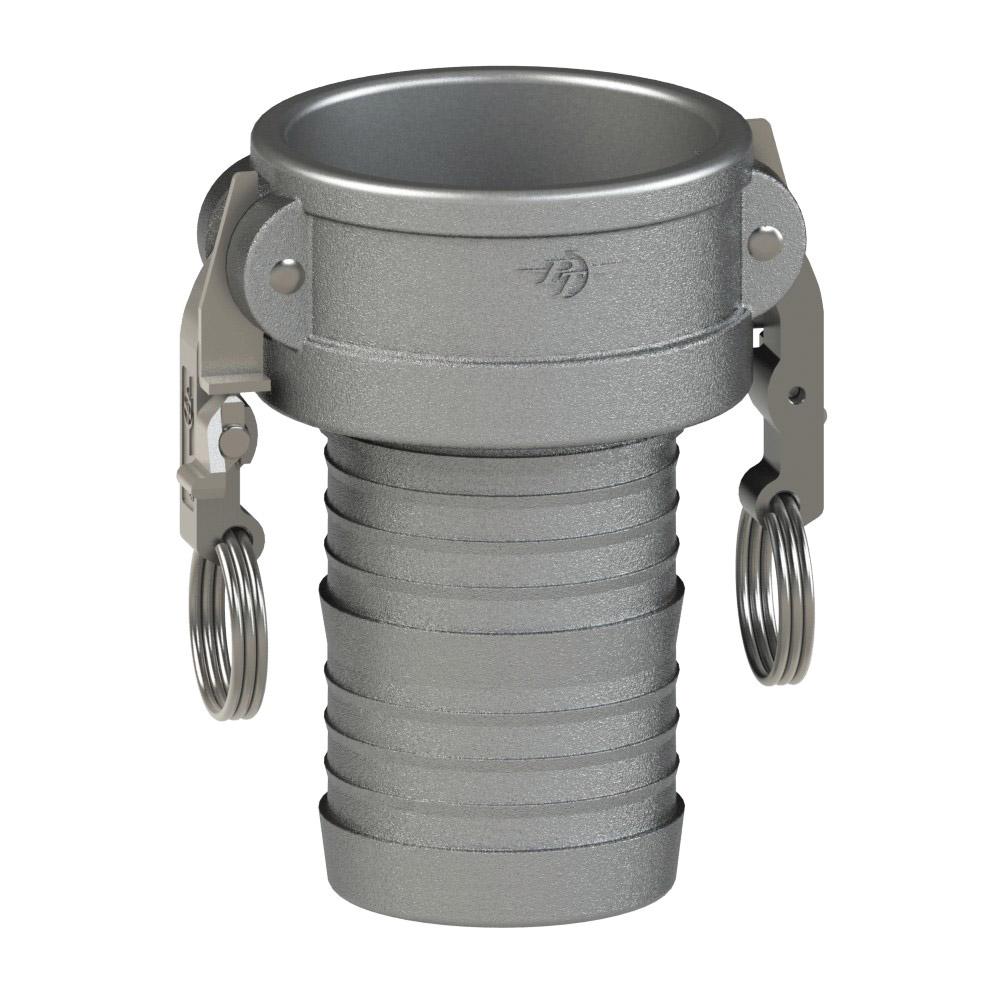

1800330L2 (30C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Ductile Iron | Buna-N Seal

1800330L2 (30C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Ductile Iron | Buna-N Seal

Sale price$124.91

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $117.42
20–59 $106.17
60+ $93.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK II
Shape:

Straight

Cam & Groove Type:

Type C
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose Shank
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
20C-SLII 1800320L2 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 250 PSI
30C-SLII 1800330L2 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 200 PSI
40C-SLII 1800340L2 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
