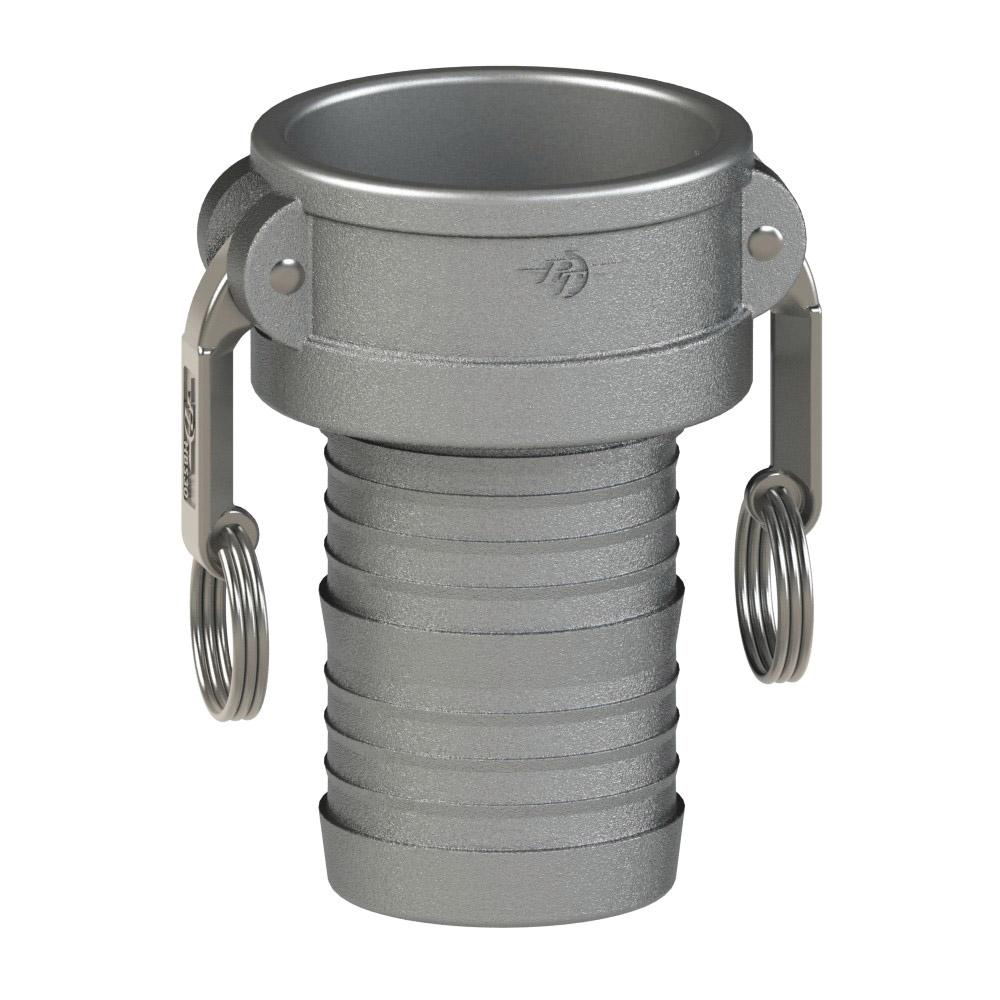

1800315 (15C) by PT-Coupling | Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Ductile Iron | Buna-N Seal

1800315 (15C) by PT-Coupling | Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Ductile Iron | Buna-N Seal

Sale price$51.30

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $48.22
40–79 $43.61
80+ $38.48
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1-1/2in Female Cam & Groove
  • 1-1/2in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
07C 1800307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 250 PSI 0.6 lbs.
10C 1800310 1" 1" 5.10" 2.44" 4.06" 1.56" 0.78" 0.69" 1.19" 250 PSI 0.859 lbs.
12C 1800312 1-1/4" 1-1/4" 6.86" 3.26" 4.44" 1.84" 0.97" 0.88" 1.44" 250 PSI 1.486 lbs.
15C 1800315 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 1.48" 250 PSI 1.824 lbs.
20C 1800320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 250 PSI 2.549 lbs.
25C 1800325 2-1/2" 2-1/2" 8.03" 4.43" 5.93" 2.18" 2.16" 2.06" 1.75" 200 PSI 3.559 lbs.
30C 1800330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 200 PSI 4.692 lbs.
40C 1800340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 150 PSI 7.884 lbs.
50C 1800350 5" 5" 11.67" 7.57" 7.24" 2.44" 4.53" 4.43" 1.97" 75 PSI 9.516 lbs.
60C 1800360 6" 6" 16.26" 10.16" 9.50" 2.70" 5.53" 5.43" 2.19" 75 PSI 15.76 lbs.
80C 1800380** 8" 8" 18.23" 12.13" 9.50" 2.72" 7.53" 7.38" 2.15" 50 PSI 23.857 lbs.

** 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
