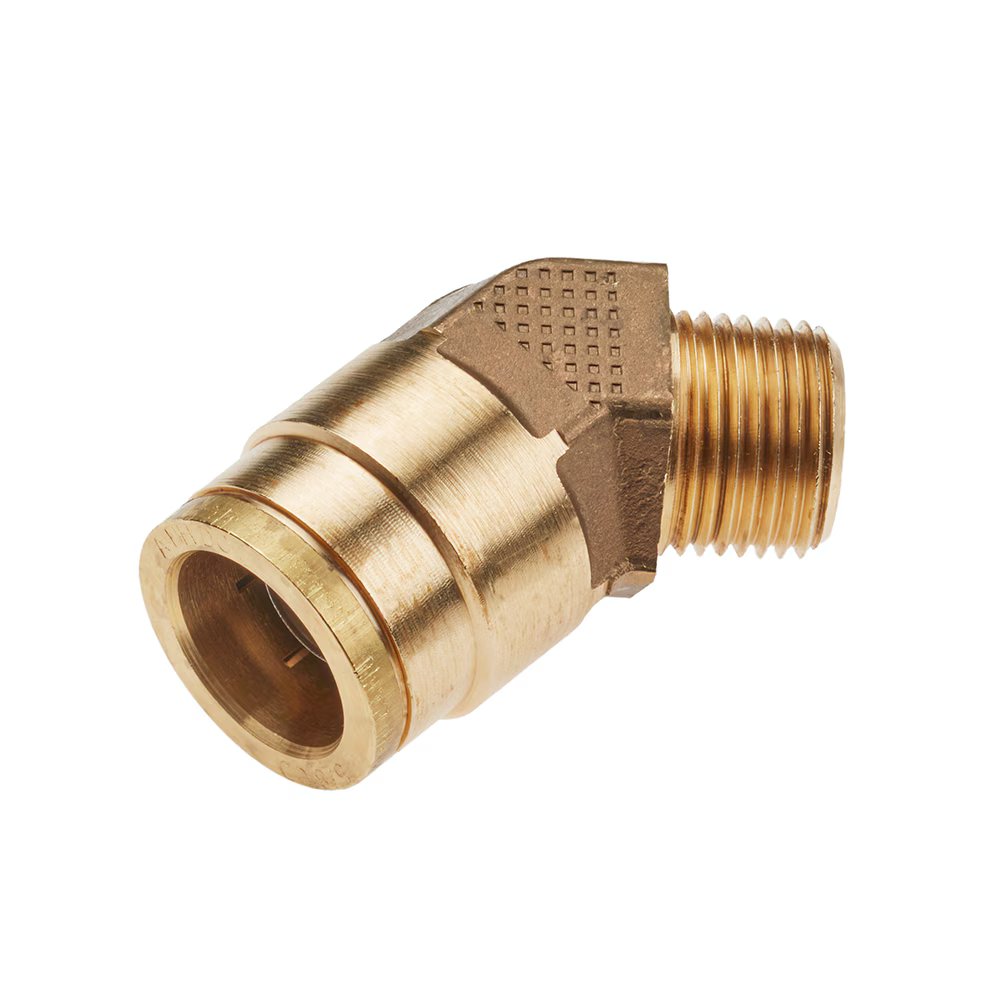

179PTCNS-4-2 by Parker | Threaded Fitting | 1/4" Rigid Push-to-Connect x 1/8" Male NPT Thread | 45° Elbow | Brass | Pack of 10
by Parker Hannifin
PTC Brass Fittings:Male Elbow Rigid 45° 179PTCNS
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $161.83 |
| 30–59 | $146.34 |
| 60+ | $129.12 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Wrench Flats |
| 179PTCNS-4-2 | 1/4" | 1/8" | .74" | .56" | 9/16" |
| 179PTCNS-4-4 | 1/4" | 1/4" | .74" | .69" | 9/16" |
| 179PTCNS-6-2 | 3/8" | 1/8" | 1.06" | .60" | 9/16" |
| 179PTCNS-6-4 | 3/8" | 1/4" | 1.06" | .69" | 9/16" |
| 179PTCNS-6-6 | 3/8" | 3/8" | 1.06" | .85" | 9/16" |
| 179PTCNS-6-8 | 3/8" | 1/2" | N/A | N/A | N/A |
| 179PTCNS-8-4 | 1/2" | 1/4" | 1.15" | .75" | 13/16" |
| 179PTCNS-8-6 | 1/2" | 3/8" | 1.15" | .75" | 13/16" |
| 179PTCNS-8-8 | 1/2" | 1/2" | 1.15" | 1.00" | 13/16" |
| 179PTCNS-10-6 | 5/8" | 3/8" | 1.20" | .76" | 7/8" |
| 179PTCNS-10-8 | 5/8" | 1/2" | 1.21" | .95" | 7/8" |
| 179PTCNS-12-8 | 3/4" | 1/2" | 1.33" | 1.19" | 1" |
