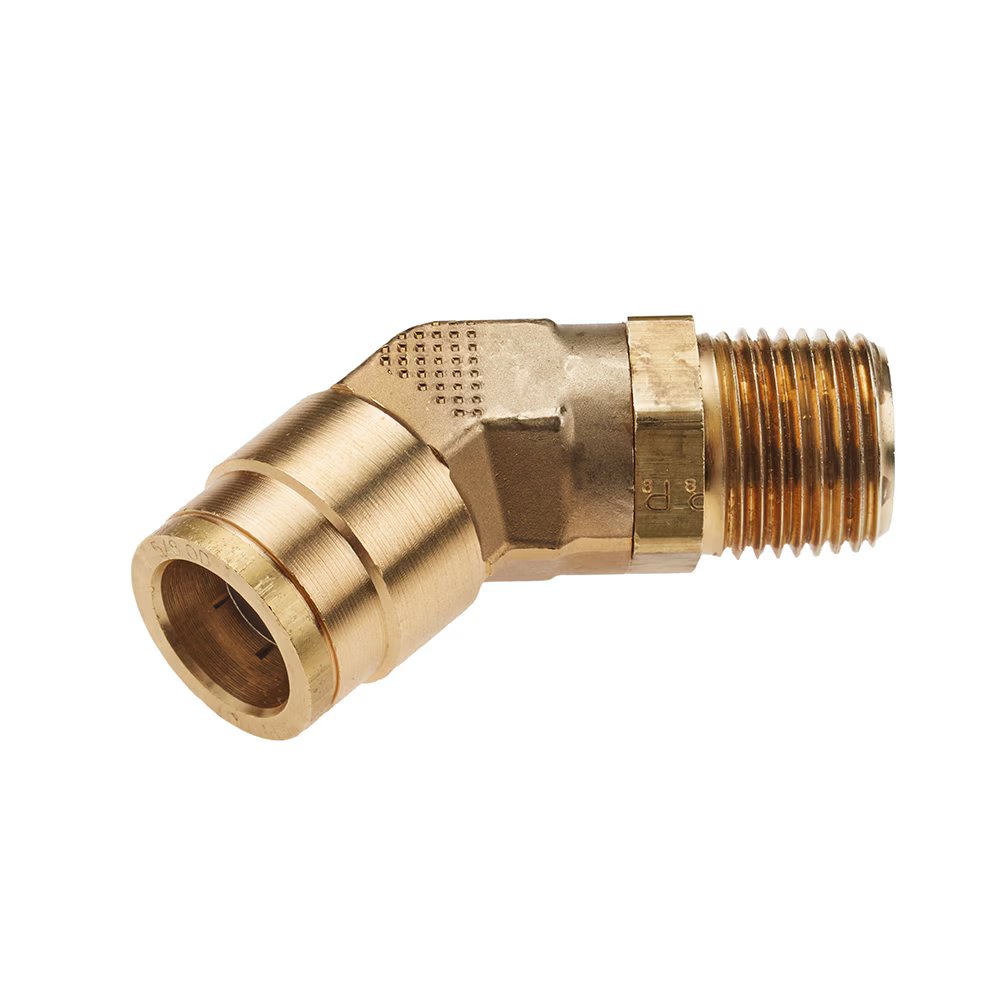

179PTC-8-8 by Parker | Threaded Fitting | 1/2" Swivel Push-to-Connect x 1/2" Male NPT Thread | 13/16" Hex | 45° Elbow | Brass | Pack of 5
by Parker Hannifin
PTC Brass Fittings:Male Elbow Swivel 45° 179PTC
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $159.02 |
| 30–59 | $143.79 |
| 60+ | $126.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Hex | Wrench Flats |
| 179PTC-4-2 | 1/4" | 1/8" | .76" | .93" | 9/16" | 9/16" |
| 179PTC-4-4 | 1/4" | 1/4" | .76" | 1.15" | 9/16" | 9/16" |
| 179PTC-6-2 | 3/8" | 1/8" | .95" | 1.05" | 11/16" | 3/4" |
| 179PTC-6-4 | 3/8" | 1/4" | .95" | 1.17" | 11/16" | 3/4" |
| 179PTC-6-6 | 3/8" | 3/8" | .95" | 1.20" | 11/16" | 3/4" |
| 179PTC-8-4 | 1/2" | 1/4" | 1.15" | 1.70" | 13/16" | 13/16" |
| 179PTC-8-6 | 1/2" | 3/8" | 1.15" | 1.78" | 13/16" | 13/16" |
| 179PTC-8-8 | 1/2" | 1/2" | 1.15" | 1.93" | 7/8" | 9/16" |
| 179PTC-10-8 | 5/8" | 1/2" | N/A | N/A | N/A | N/A |
