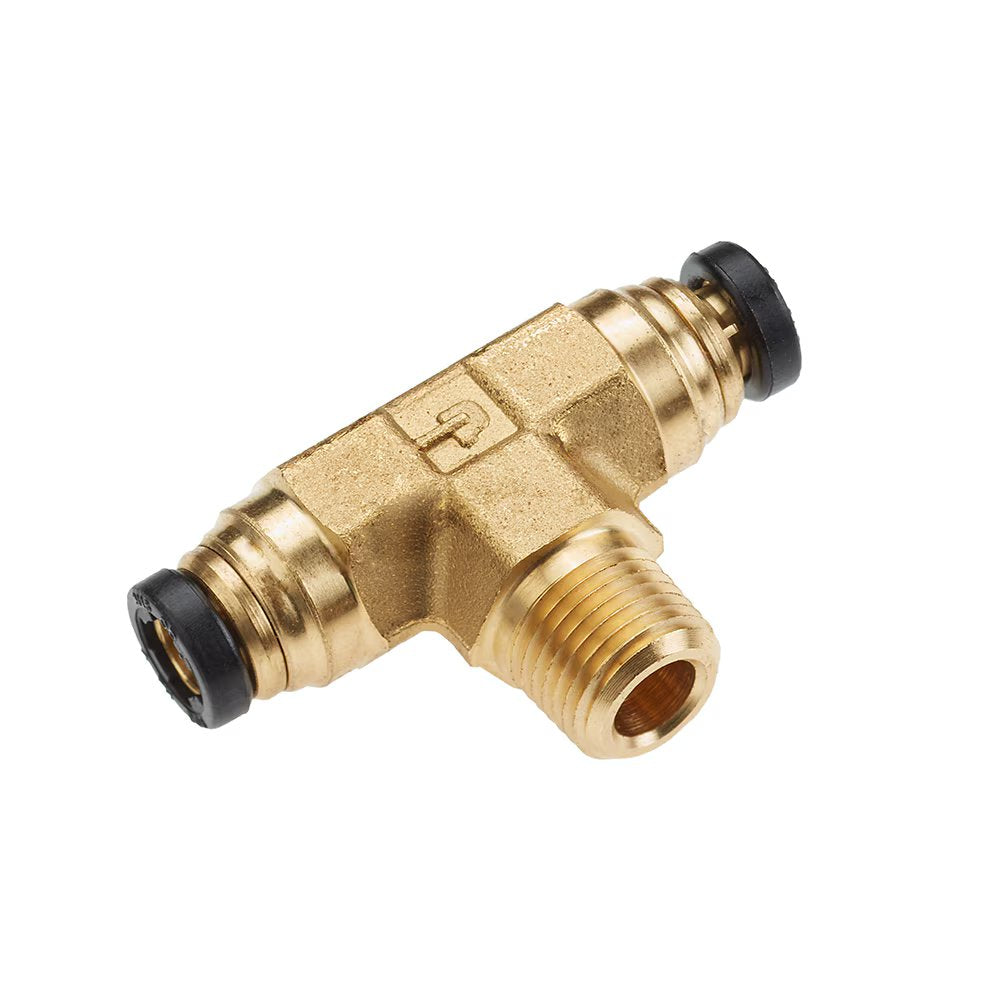

172PTCNS-8-6 by Parker | Threaded Fitting | 1/2" Rigid Push-to-Connect x 3/8" Male NPT Thread | 2.62" Length | Tee | Brass | Pack of 5
by Parker Hannifin
PTC Brass Fittings:Male Branch Tee Rigid 172PTCNS
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $220.88 |
| 30–59 | $199.73 |
| 60+ | $176.24 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | Pipe Thread | L1 | L2 | N | Wrench Flats |
| 172PTCNS-5/32-2 | 5/32" | 1/8" | .78" | .75" | 7/16" | .47" | 15/32" |
| 172PTCNS-5/32-4 | 5/32" | 1/4" | .78" | .88" | 7/16" | .47" | 15/32" |
| 172PTCNS-3-2 | 3/16" | 1/8" | .77" | .75" | 7/16" | .47" | 15/32" |
| 172PTCNS-4-2 | 1/4" | 1/4" | 1/8" | .91" | .91" | .77" | 1/2" |
| 172PTCNS-4-4 | 1/4" | 1/4" | 1/4" | N/A | N/A | N/A | N/A |
| 172PTCNS-6-4 | 3/8" | 3/8" | 1/4"" | 1.10" | 1.10" | .97" | 5/8" |
| 172PTCNS-6-4-4 | 3/8" | 1/4" | 1/4" | 1.10" | .85" | .97" | 5/8" |
| 172PTCNS-6-6 | 3/8" | 3/8" | 3/8" | 1.04" | 1.04" | .91" | 5/8" |
| 172PTCNS-6-8 | 3/8" | 3/8" | 1/2" | 1.17" | 1.17" | 1.26" | 7/8" |
| 172PTCNS-8-6 | 1/2" | 1/2" | 3/8" | 1.31" | 1.31" | 1.07" | 3/4" |
| 172PTCNS-8-6-8 | 1/2" | 3/8" | 1/2" | 1.31" | 1.24" | 1.25" | 3/4" |
| 172PTCNS-8-8 | 1/2" | 1/2" | 1/2" | 1.31" | 1.31" | 1.25" | 3/4" |
