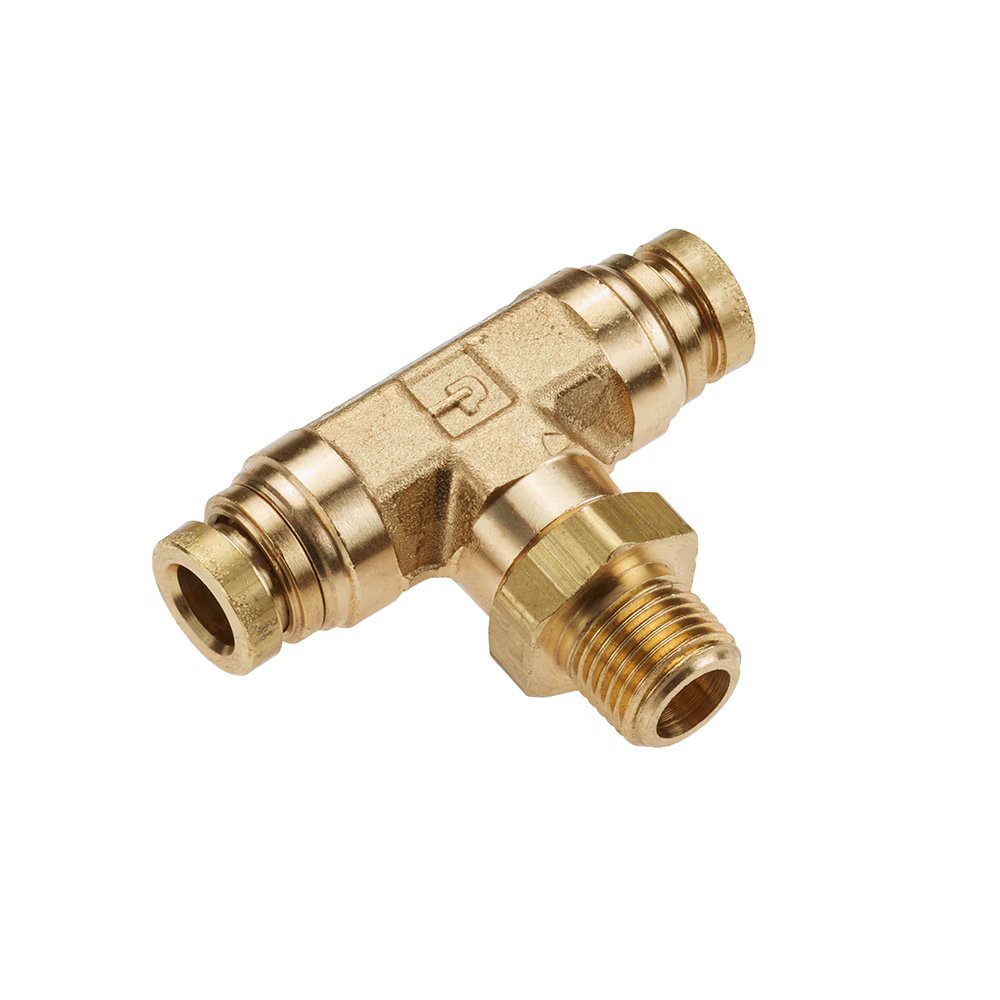

172PTC-8-8 by Parker | Threaded Fitting | 1/2" Swivel Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex | 2.62" Length | Tee | Brass | Pack of 5
by Parker Hannifin
PTC Brass Fittings:Male Branch Tee Swivel 172PTC
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $239.09 |
| 15–29 | $216.20 |
| 30+ | $190.76 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Hex | Wrench Flats |
| 172PTC-4-2 | 1/4" | 1/8" | .82" | 1.02" | 9/16" | 1/2" |
| 172PTC-4-4 | 1/4" | 1/4" | .82" | 1.23" | 9/16" | 1/2" |
| 172PTC-6-2 | 3/8" | 1/8" | 1.10" | 1.34" | 11/16" | 5/8" |
| 172PTC-6-4 | 3/8" | 1/4" | 1.10" | 1.45" | 11/16" | 5/8" |
| 172PTC-6-6 | 3/8" | 3/8" | 1.10" | 1.48" | 11/16" | 5/8" |
| 172PTC-8-4 | 1/2" | 1/4" | 1.31" | 1.45" | 5/8" | 3/4" |
| 172PTC-8-6 | 1/2" | 3/8" | 1.31" | 1.48" | 11/16" | 3/4" |
| 172PTC-8-8 | 1/2" | 1/2" | 1.31" | 1.97" | 7/8" | 3/4" |
