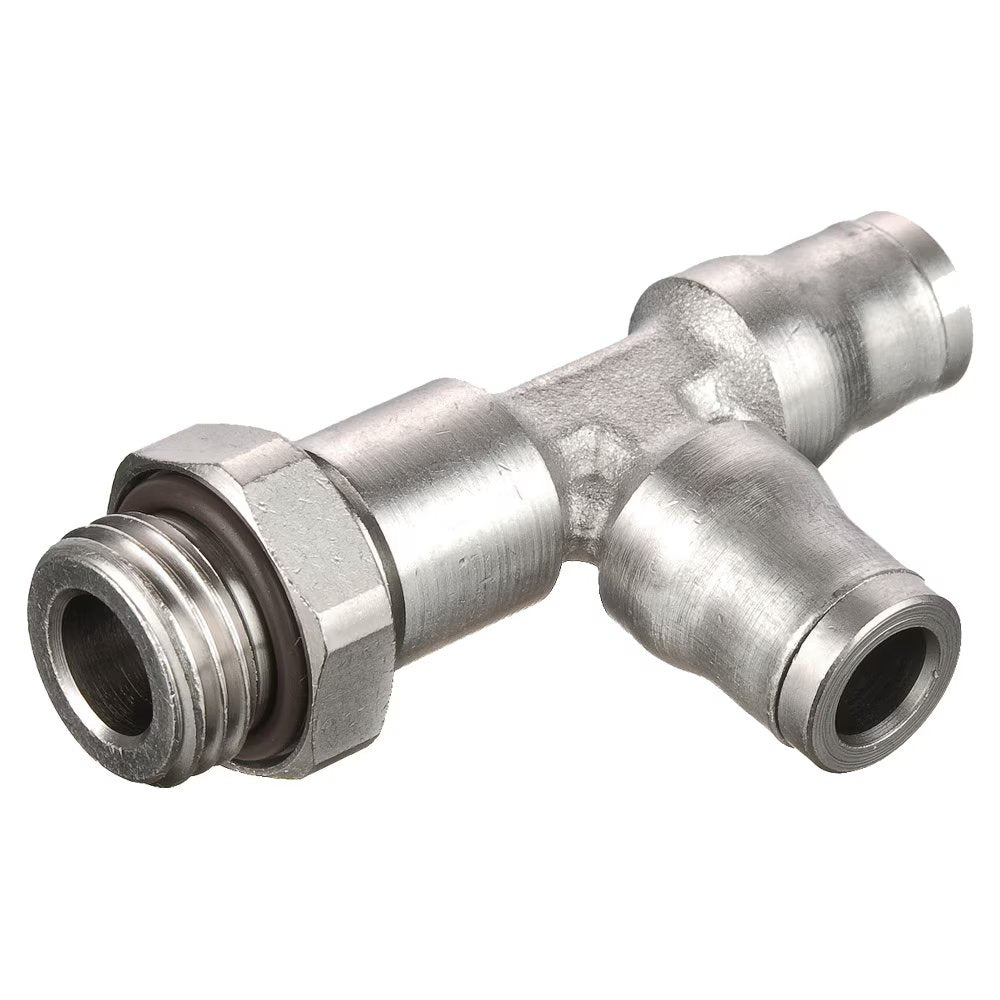

172PLM-4M-2G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 4mm Tube Size x 1/8" Male BSPP Threads | 14.00mm Height | 25.50mm Width | 36mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:172PLM Male Branch Tee Tube to BSPP or M5
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $136.26 |
| 20–59 | $123.22 |
| 60+ | $108.72 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP / M5 | F | H | K | L |
| 172PLM-4M-M5 | 4 mm | M5X0.8 | 10 mm | 27.50 mm | 11.00 mm | 18.00 mm |
| 172PLM-4M-2G | 4 mm | 1/8" | 13 mm | 25.50 mm | 14.00 mm | 18.00 mm |
| 172PLM-6M-2G | 6 mm | 1/8" | 130 mm | 31.00 mm | 14.00 mm | 21.50 mm |
| 172PLM-6M-4G | 6 mm | 1/4" | 16 mm | 30.50 mm | 17.50 mm | 21.50 mm |
| 172PLM-8M-2G | 8 mm | 1/8" | 14 mm | 33.50 mm | 15.00 mm | 23.50 mm |
| 172PLM-8M-4G | 8 mm | 1/4" | 16 mm | 34.00 mm | 17.50 mm | 23.50 mm |
| 172PLM-10M-4G | 10 mm | 1/4" | 18 mm | 42.00 mm | 19.50 mm | 29.00 mm |
| 172PLM-12M-6G | 12 mm | 3/8" | 21 mm | 46.00 mm | 23.00 mm | 31.00 mm |
| 172PLM-14M-8G | 14 mm | 1/2" | 24 mm | 49.00 mm | 26.00 mm | 34.00 mm |
