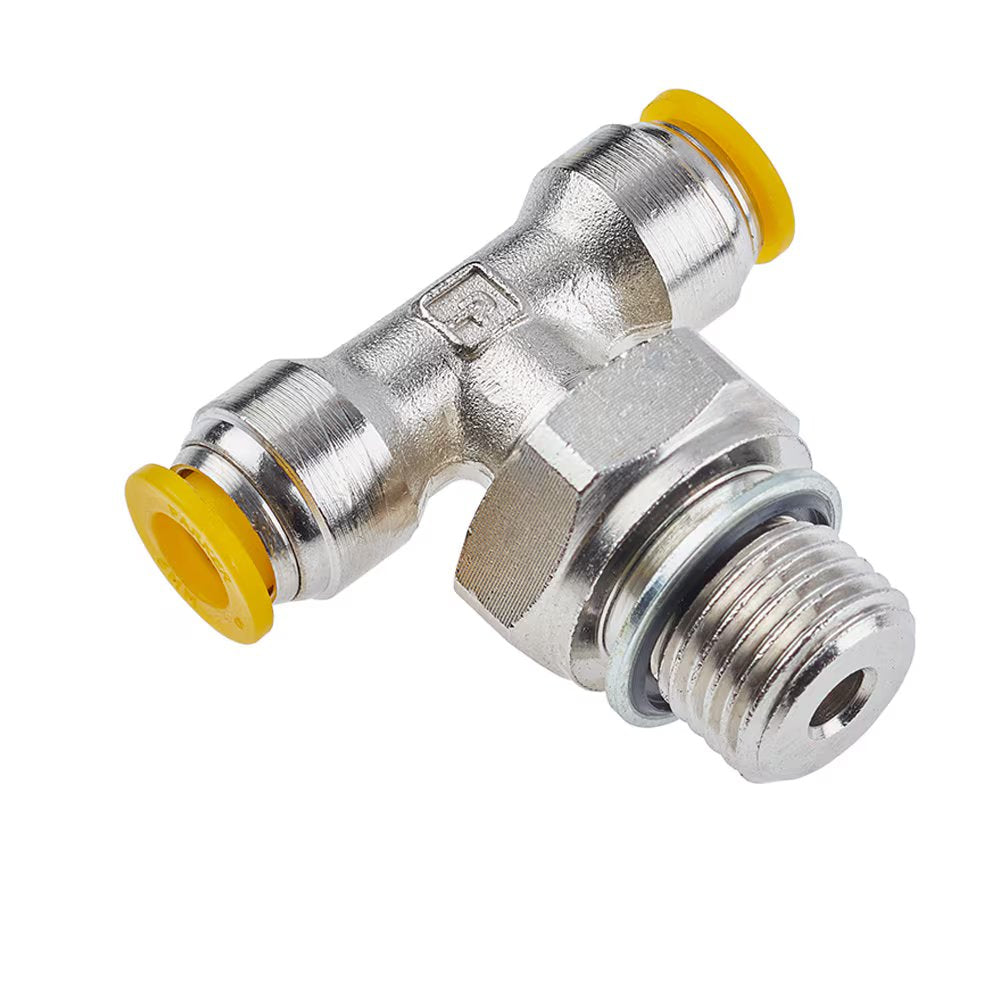

172PLP-10M-8G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 10mm Swivel Push-to-Connect x 10mm Swivel Push-to-Connect x 1/2" Male BSPP Thread | 1-1/16" Hex | Tee | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:172PLP Male Branch Tee Swivel – BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $161.91 |
| 20–59 | $146.40 |
| 60+ | $129.18 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPP | Hex (C) | L | N | Flow Diameter (D) |
| 172PLP-4M-2G | 4 mm | 1/8" | 9/16" | 19.05 mm | 24.35 mm | 3.17 mm |
| 172PLP-4M-4G | 4 mm | 1/4" | 3/4" | 19.05 mm | 30.70 mm | 3.17 mm |
| 172PLP-6M-2G | 6 mm | 1/8" | 9/16" | 21.15 mm | 23.92 mm | 3.96 mm |
| 172PLP-6M-4G | 6 mm | 1/4" | 3/4" | 21.15 mm | 30.27 mm | 3.96 mm |
| 172PLP-6M-6G | 6 mm | 3/8" | 7/8" | 21.15 mm | 32.30 mm | 3.96 mm |
| 172PLP-8M-2G | 8 mm | 1/8" | 9/16" | 24.20 mm | 27.33 mm | 6.35 mm |
| 172PLP-8M-4G | 8 mm | 1/4" | 3/4" | 24.20 mm | 33.42 mm | 6.35 mm |
| 172PLP-8M-6G | 8 mm | 3/8" | 7/8" | 24.20 mm | 33.42 mm | 6.35 mm |
| 172PLP-10M-4G | 10 mm | 1/4" | 3/4" | 25.52 mm | 33.42 mm | 6.35 mm |
| 172PLP-10M-6G | 10 mm | 3/8" | 7/8" | 25.52 mm | 33.42 mm | 6.35 mm |
| 172PLP-10M-8G | 10 mm | 1/2" | 1-1/16" | 25.52 mm | 38.25 mm | 6.35 mm |
| 172PLP-12M-4G | 12 mm | 1/4" | 3/4" | 28.65 mm | 35.56 mm | 7.95 mm |
| 172PLP-12M-6G | 12 mm | 3/8" | 7/8" | 28.65 mm | 35.56 mm | 9.52 mm |
| 172PLP-12M-8G | 12 mm | 1/2" | 1-1/16" | 28.65 mm | 39.11 mm | 9.52 mm |
