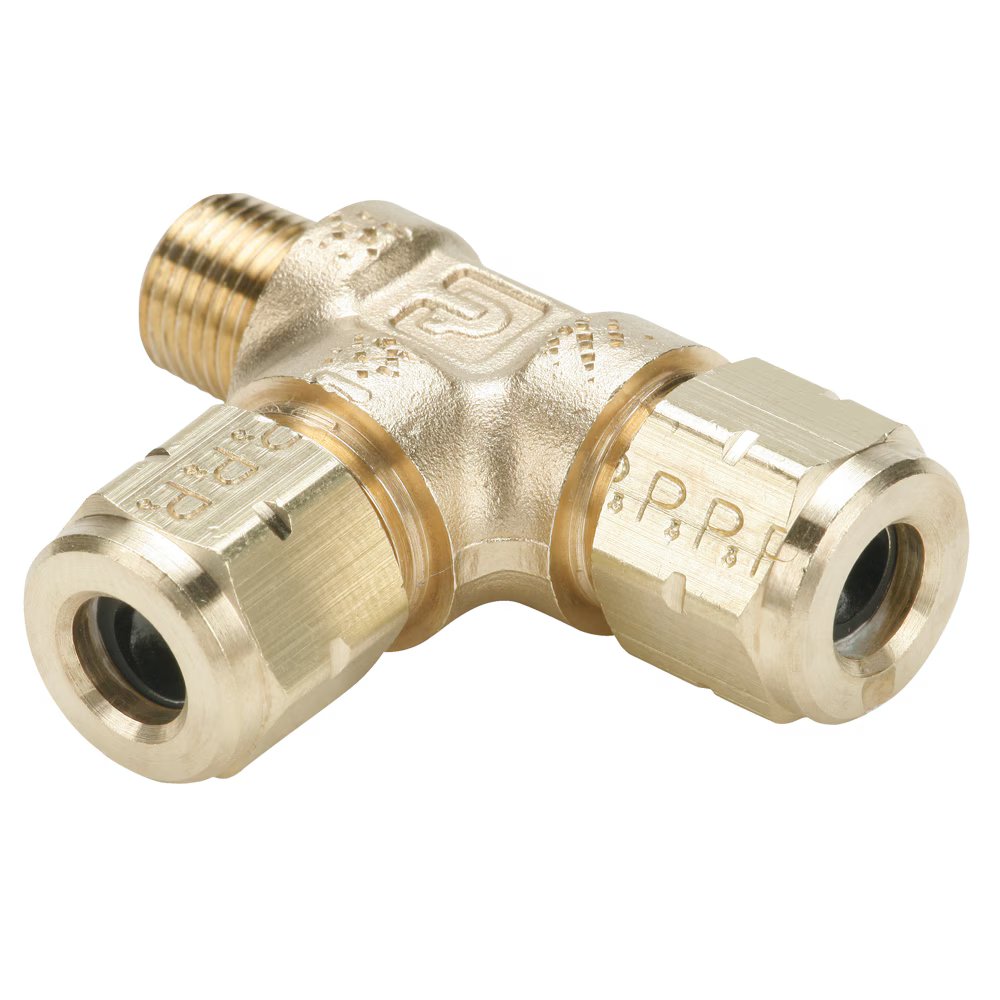

171VL-4-2 by Parker | Vibra-Lok Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread | 9/16" Hex | 1.79" Length | Tee | Brass | Pack of 2

171VL-4-2 by Parker | Vibra-Lok Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread | 9/16" Hex | 1.79" Length | Tee | Brass | Pack of 2

Sale price$89.78

by Parker Hannifin
Vibra-Lok Fittings:Male Run Tee 171VL

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–19 $84.39
20–59 $76.31
60+ $67.34
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vibra-Lok
Shape:

Tee

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • 1/8in Male NPT
  • Some Ends Match
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Pipe Thread Hex (C) L M Flow Diameter (D)
171VL-4-2 1/4" 1/8" 9/16" 1.03" .76" .188"
