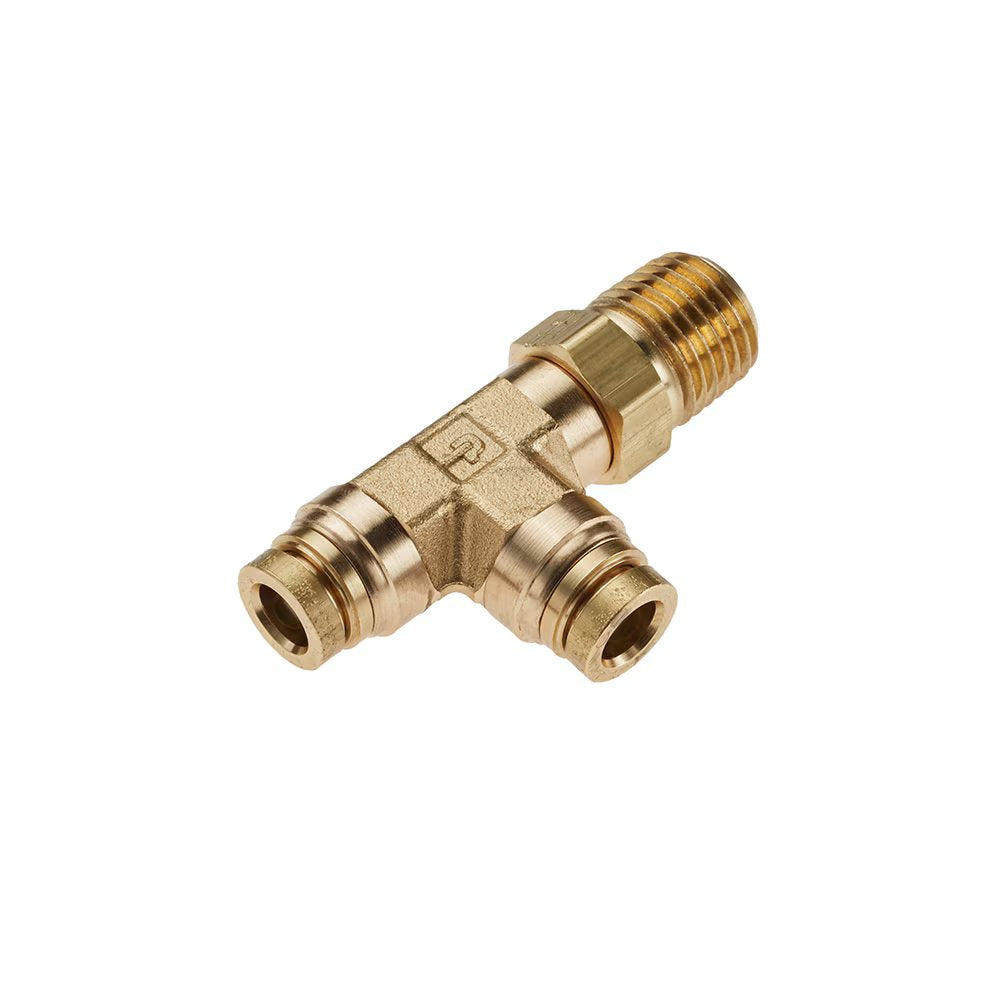

171PTC-6-6 by Parker | Threaded Fitting | 3/8" Swivel Push-to-Connect x 3/8" Male NPT Thread | 11/16" Hex | 2.48" Length | Tee | Brass | Pack of 10
by Parker Hannifin
PTC Brass Fittings:Male Run Tee Swivel 171PTC
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $329.00 |
| 15–29 | $297.50 |
| 30+ | $262.50 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Hex | Wrench Flats |
| 171PTC-4-2 | 1/4" | 1/8" | .82" | 1.01" | 9/16" | 1/2" |
| 171PTC-4-4 | 1/4" | 1/4" | .82" | 1.23" | 9/16" | 1/2" |
| 171PTC-4-6 | 1/4" | 3/8" | .82" | 1.23" | 11/16" | 1/2" |
| 171PTC-6-4 | 3/8" | 1/4" | 1.10" | 1.35" | 11/16" | 5/8" |
| 171PTC-6-6 | 3/8" | 3/8" | 1.10" | 1.38" | 11/16" | 5/8" |
| 171PTC-8-4 | 1/2" | 1/4" | 1.31" | 1.45" | 11/16" | 3/4" |
| 171PTC-8-6 | 1/2" | 3/8" | 1.31" | 1.48" | 11/16" | 3/4" |
| 171PTC-8-8 | 1/2" | 1/2" | 1.31" | 1.69" | 7/8" | 3/4" |
