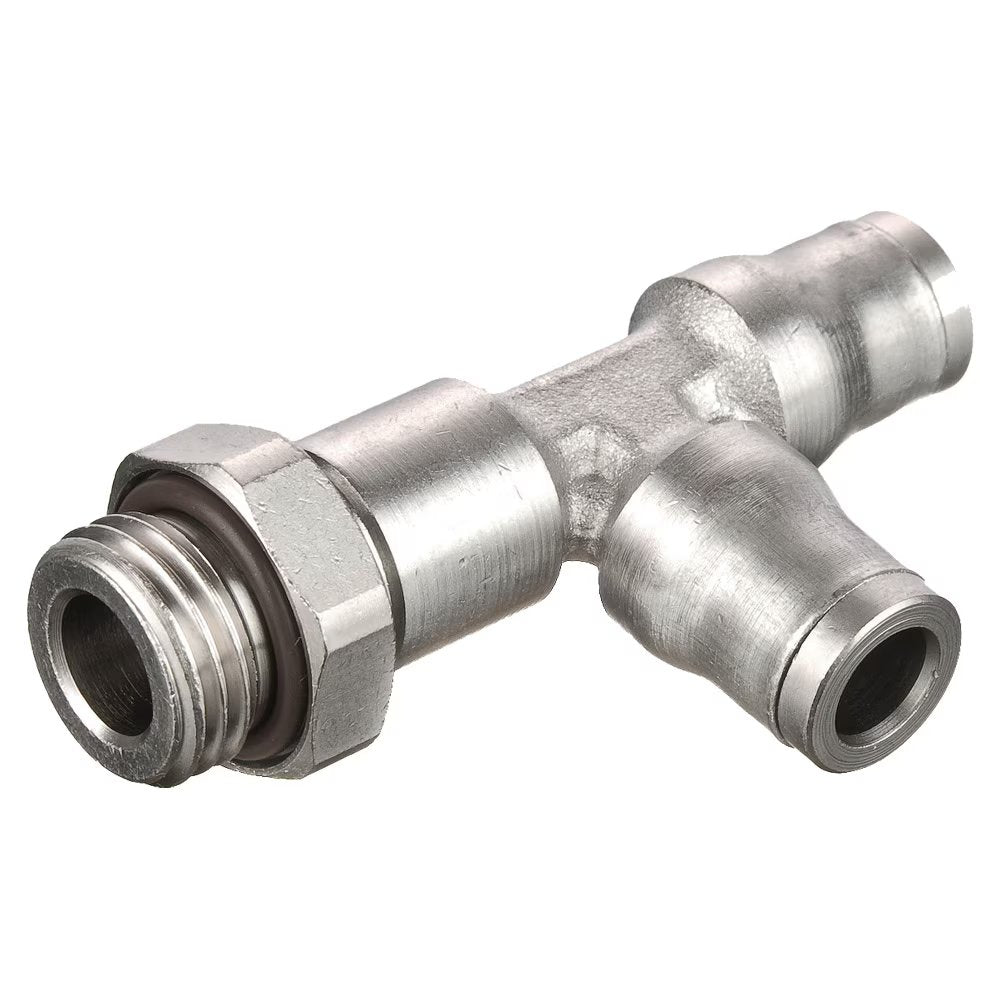

171PLM-14M-8G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 14mm Tube Size x 1/2" Male BSPP Threads | 26.00mm Height | 45.00mm Width | 72.5mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 5
by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:171PLM Male Run Tee Tube to Tube to BSPP or M5
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $162.62 |
| 20–59 | $147.05 |
| 60+ | $129.75 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP / M5 | F | H1 | H2 | K | L |
| 171PLM-4M-M5 | 4 mm | M5X0.8 | 10 mm | 18.00 mm | 22.50 mm | 11.00 mm | 23.00 mm |
| 171PLM-6M-2G | 6 mm | 1/8" | 13 mm | 21.50 mm | 25.00 mm | 14.00 mm | 28.00 mm |
| 171PLM-6M-4G | 6 mm | 1/4" | 16 mm | 21.50 mm | 24.50 mm | 17.50 mm | 28.00 mm |
| 171PLM-8M-2G | 8 mm | 1/8" | 14 mm | 23.50 mm | 26.50 mm | 15.00 mm | 31.00 mm |
| 171PLM-8M-4G | 8 mm | 1/4" | 16 mm | 23.50 mm | 26.50 mm | 17.50 mm | 31.00 mm |
| 171PLM-10M-4G | 10 mm | 1/4" | 18 mm | 29.00 mm | 33.00 mm | 19.50 mm | 37.50 mm |
| 171PLM-12M-6G | 12 mm | 3/8" | 21 mm | 31.00 mm | 36.50 mm | 23.00 mm | 40.50 mm |
| 171PLM-14M-8G | 14 mm | 1/2" | 24 mm | 34.00 mm | 38.50 mm | 26.00 mm | 45.00 mm |
