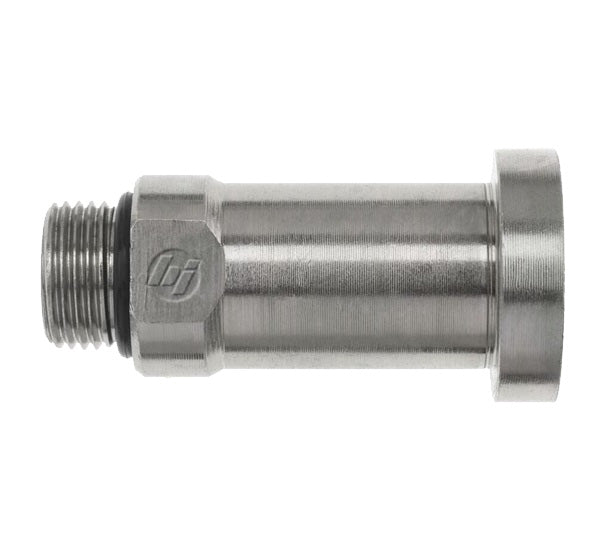

1710-12-12 by Brennan Inc. | -12 Male O-Ring Boss x -12 Flange Code 61 | Straight | Steel

1710-12-12 by Brennan Inc. | -12 Male O-Ring Boss x -12 Flange Code 61 | Straight | Steel

Sale price$31.23

Brennan Inc.
Flange Fittings: 1710 - Male O-Ring Boss x Flange Straight (Code 61
Buy More, Save More!
Quantity Price Each
10–39 $29.36
40–79 $26.55
80+ $23.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 3/4in Flange Code 61
Material(s):
  • Steel
Part Number Material TubeO.D. 1Thread 2Flannge L(in.) A/F(in.)
1710-08-08 Steel 1/2" 3/4-16 UNF 1/2" 2.490" 0.875"
1710-12-12 Steel 3/4" 1-1/16-12" UN 3/4" 2.610" 1.250"
1710-16-16 Steel 1" 1-5/16-12" UN 1" 2.610" 1-1/2"
1710-20-20 Steel 1-1/4" 1-5/8-12" UN 1-1/4" 3.130" 1-7/8"
1710-24-24 Steel 1-1/2" 1-7/8-12" UN 1-1/2" 3.140" 2.125"
1710-32-32 Steel 2" 2-1/2-12" UN 2" 3.630" 2.750"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
