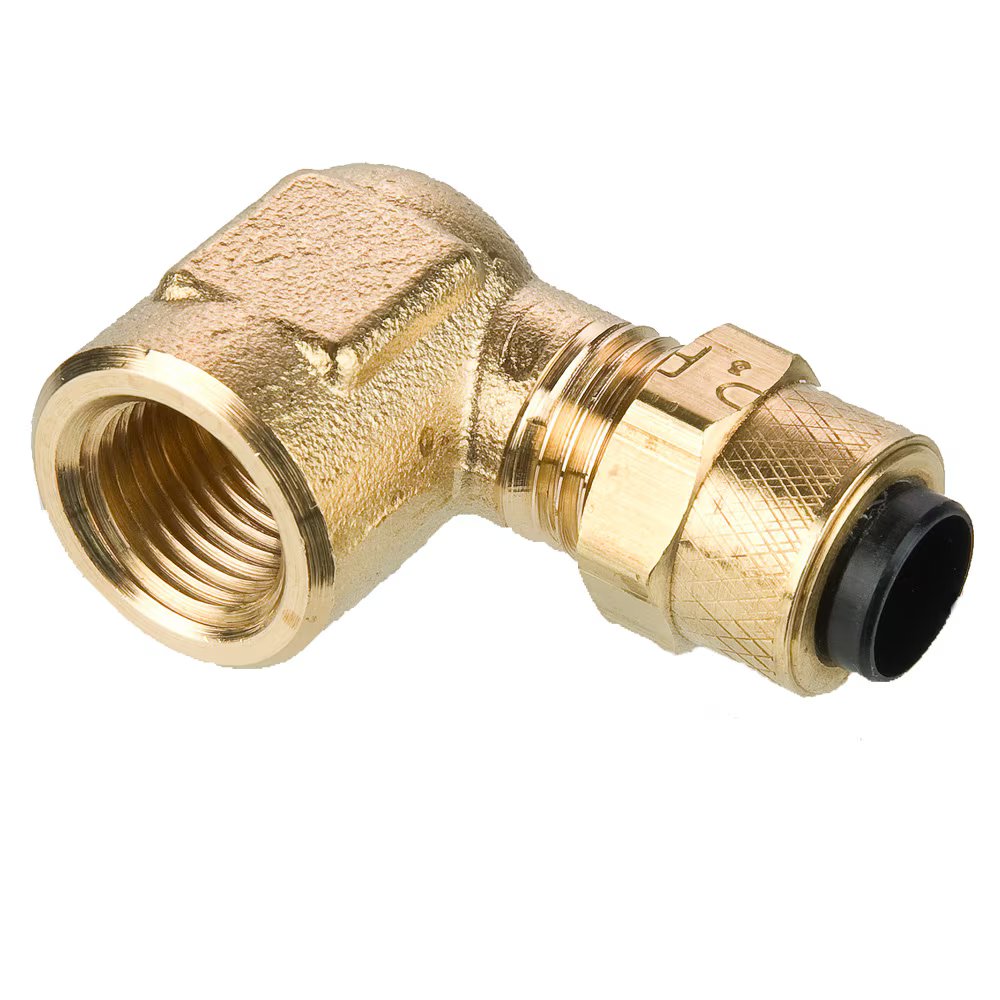

170P-6-4 by Parker | Poly-Tite Fittings | 3/8" Tube Size x 1/4" Female Pipe Thread x 1/2 Thread | 90° Elbow | Brass | Pack of 10

170P-6-4 by Parker | Poly-Tite Fittings | 3/8" Tube Size x 1/4" Female Pipe Thread x 1/2 Thread | 90° Elbow | Brass | Pack of 10

Sale price$149.03

by Parker Hannifin
Poly-Tite Fittings:Female Elbow 170P

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $140.09
20–59 $126.68
60+ $111.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 170P Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Tube Compression
  • 1/4in Female NPTF
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (F)
170P-4-2 1/4" 1/8" 3/8"-24 .90" .79" .56" .125"
170P-4-4 1/4" 1/4" 3/8"-24 1.00" .89" .69" .125"
170P-6-4 3/8" 1/4" 1/2"-24 1.01" .89" .69" .204"
170P-8-6 1/2" 3/8" 11/16"-20 1.19" 1.11" 1.13" .323"
