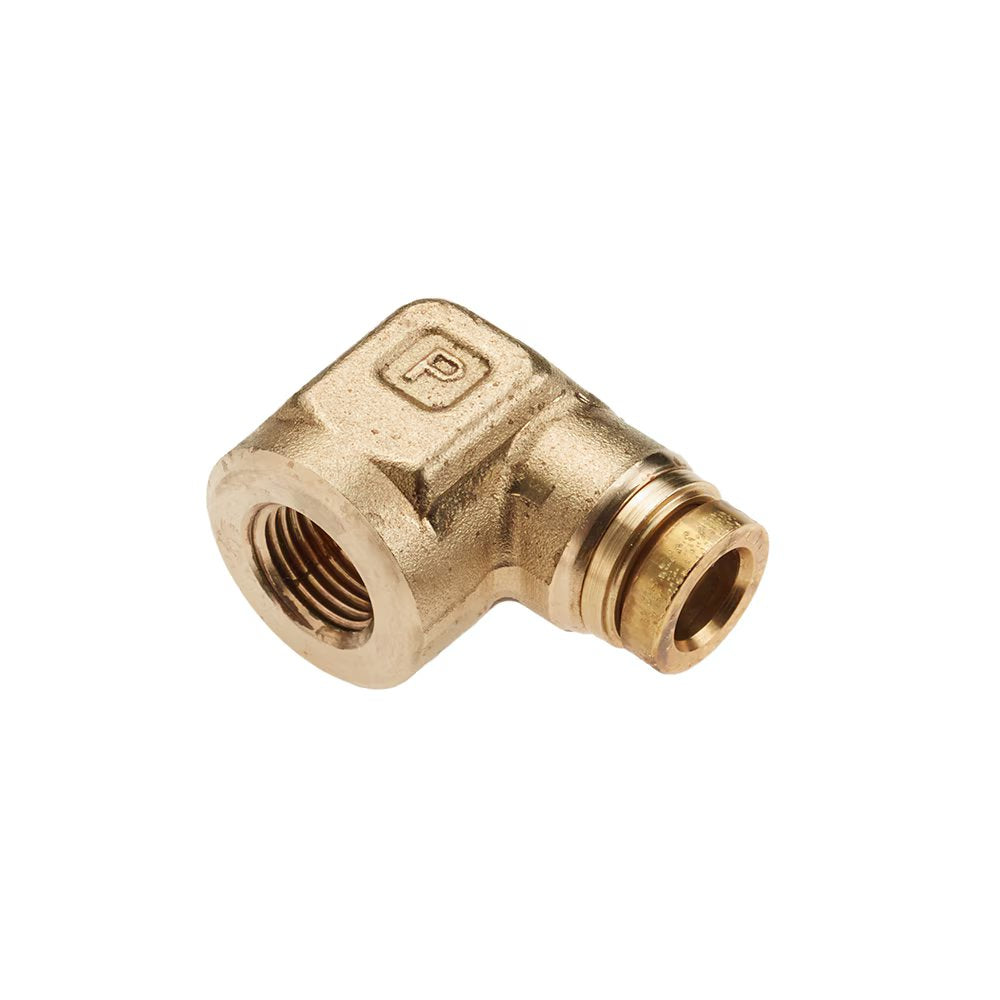

170PTCNS-6-6 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 3/8" Female NPT Thread | 90° Elbow | Brass | Pack of 10
by Parker Hannifin
PTC Brass Fittings:Female Elbow Rigid 90° 170PTCNS
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $324.55 |
| 15–29 | $293.48 |
| 30+ | $258.95 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Wrench Flats |
| 170PTCNS-4-2 | 1/4" | 1/8" | .84 | .56" | 11/16" |
| 170PTCNS-4-4 | 1/4" | 1/4" | .91 | .67" | 11/16" |
| 170PTCNS-6-2 | 3/8" | 3/8" | 1.07 | .51" | 9/16" |
| 170PTCNS-6-4 | 3/8" | 1/4" | 1.07 | .84" | 9/16" |
| 170PTCNS-6-6 | 3/8" | 3/8" | 1.24 | .69" | 7/8" |
| 170PTCNS-8-4 | 1/2" | 1/4" | 1.25 | .75" | 11/16" |
| 170PTCNS-8-6 | 1/2" | 3/8" | 1.36 | .80" | 11/16" |
| 170PTCNS-8-8 | 1/2" | 1/2" | 1.63 | .97" | 1" |
