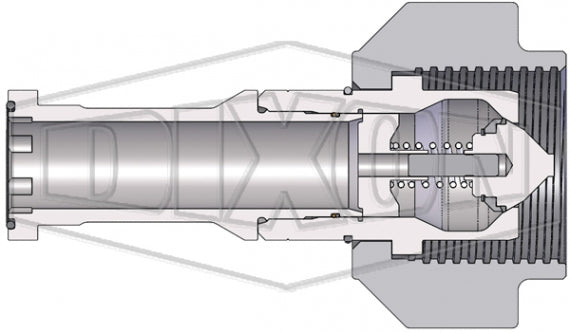

Hydraulic Coupling: WS-Series Heavy-Duty Wingstyle Code 62 Flange Head Coupler

Used extensively in oil field and off shore oil rig applications.
Buy More, Save More!
Quantity Price Each
5–14 $602.63
15–29 $544.94
30+ $480.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • WS Series
Shape:

Straight

Ends Configuration:
  • 2in Female ISO-7241 Wing Nut QD Interchange
  • 2in Code 62 Flange
Compatibility & Interchange:
  • Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD
  • Stucchi VOF, Faster OGV, Danfoss / Aeroquip / Eaton FD85, Holmbury LC
Construction:
  • Machined components are manufactured using solid steel or 316 stainless steel bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance.
  • Rugged high-strength steel sand-cast wing nut for threaded connect and disconnect operation.
  • 316 stainless steel plug connection-threads are coated to prevent galling during connection/disconnection.
  • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.
Seal Components:
  • PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage.
Additional Information:
WS-Series | Heavy-Duty Wingstyle (Connected) Rated Pressure Chart
Body Size Steel Coupler/Plug 316 Stainless Steel Coupler/Plug
Max. Working Burst Max. Working Burst
3/4" 5,000 PSI 345 Bar 32,800 PSI 2,200 Bar 3,000 PSI 200 Bar 20,000 PSI 1,400 Bar
1" 5,000 PSI 345 Bar 25,100 PSI 1,700 Bar 3,000 PSI 200 Bar 20,000 PSI 1,400 Bar
1-1/4" 5,000 PSI 345 Bar 25,100 PSI 1,700 Bar 3,000 PSI 200 Bar 15,000 PSI 1,000 Bar
1-1/2" 5,000 PSI 345 Bar 20,000 PSI 1,400 Bar 3,000 PSI 200 Bar 15,000 PSI 1,000 Bar
2" 5,000 PSI 345 Bar 15,000 PSI 1,000 Bar 3,000 PSI 200 Bar 15,000 PSI 1,000 Bar
WS-Series | Heavy-Duty Wingstyle Code 62 Flange Head Coupler
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
6WSFH6 Socket/Female 3/4" 3/4" Code 62 Flange Head Steel 4.79"
(121.67mm)		 3.31"
(84.07mm)
8WSFH8 Socket/Female 1" 1" Code 62 Flange Head Steel 6.98"
(177.29mm)		 4.10"
(104.14mm)
10WSFH10 Socket/Female 1-1/4" 1-1/4" Code 62 Flange Head Steel 8.27"
(210.06mm)		 4.78"
(121.41mm)
12WSFH12 Socket/Female 1-1/2" 1-1/2" Code 62 Flange Head Steel 9.30"
(236.14mm)		 5.68"
(144.27mm)
16WSFH16 Socket/Female 2" 2" Code 62 Flange Head Steel 10.82"
(274.93mm)		 6.90"
(175.26mm)
WS-Series | Wingstyle Code 62 Flange Head Plug
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
WS6FH6 Plug/Male 3/4" 3/4" Code 62 Flange Head Steel 5.23"
(132.84mm)		 1.74"
(44.20mm)
WS8FH8 Plug/Male 1" 1" Code 62 Flange Head Steel 7.84"
(199.14mm)		 2.25"
(57.15mm)
WS10FH10 Plug/Male 1-1/4" 1-1/4" Code 62 Flange Head Steel 9.39"
(238.61mm)		 2.63"
(66.68mm)
WS12FH12 Plug/Male 1-1/2" 1-1/2" Code 62 Flange Head Steel 10.15"
(257.76mm)		 3.25"
(82.55mm)
WS16FH16 Plug/Male 2" 2" Code 62 Flange Head Steel 11.78"
(299.31mm)		 4.00"
(101.60mm)
