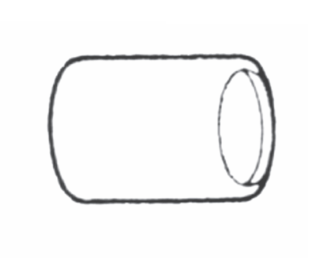

16FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 1" Hose ID | 1.75" Ferrule OD | Straight | Trivalent Zinc

16FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 1" Hose ID | 1.75" Ferrule OD | Straight | Trivalent Zinc

Minimum Order Quantity: 5 Units

Sale price$5.86

Couplamatic Inc
Suction and Return Line Couplings - 100R4 Ferrules
Buy More, Save More!
Quantity Price Each
20–39 $5.51
40–79 $4.98
80+ $4.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • Suction & Return Line Coupling Series
Shape:

Straight

Compatible Series:
  • 104MB Series
  • 3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Thread Size Tube OD
12FHS 3/4" 1.01" 1.50"
16FHS 1" 1.07" 1.75"
20FHS 1-1/4" 1.52" 2.00"
24FHS 1-1/2" 1.56" 2.25"
32FHS 2" 2.00" 2.75"
