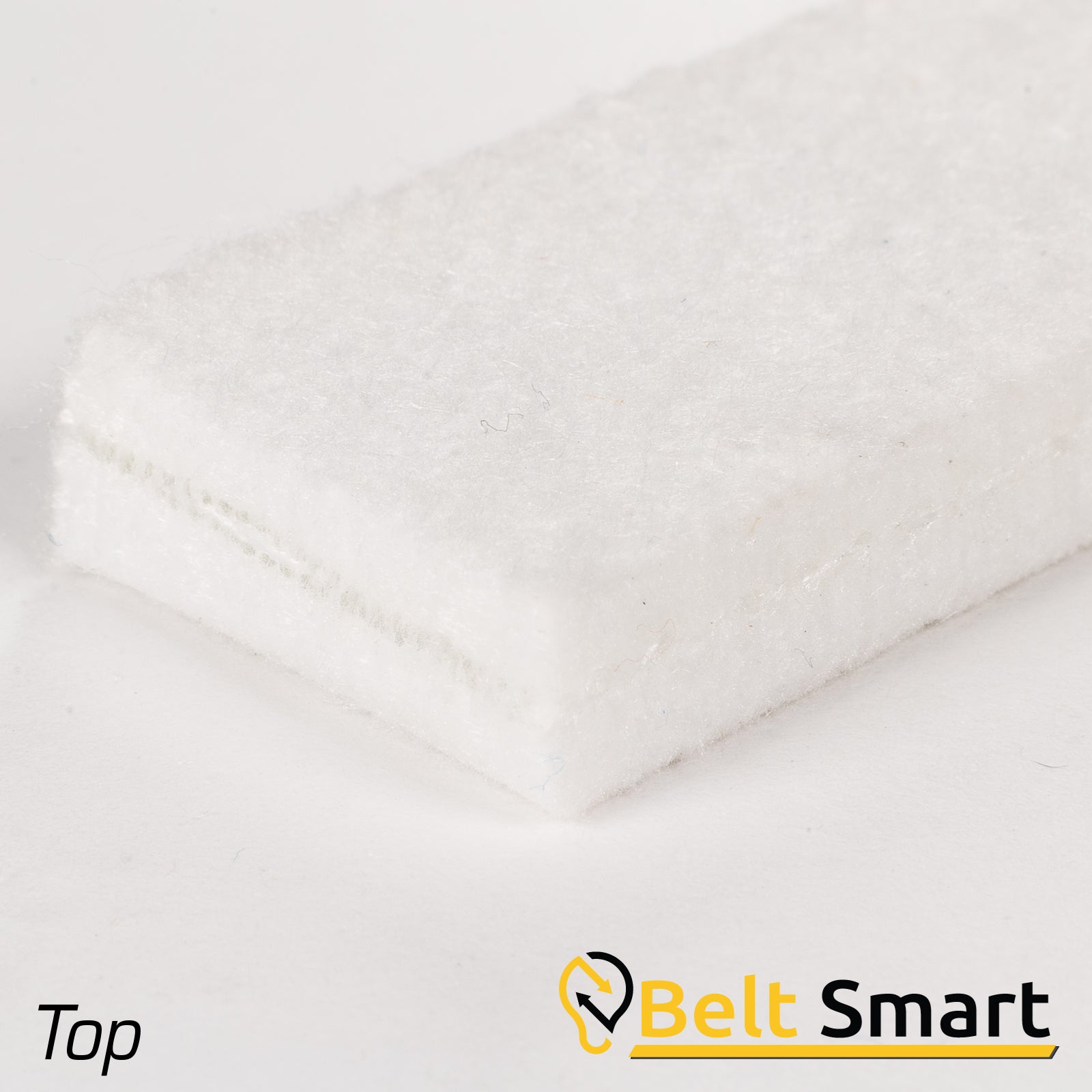

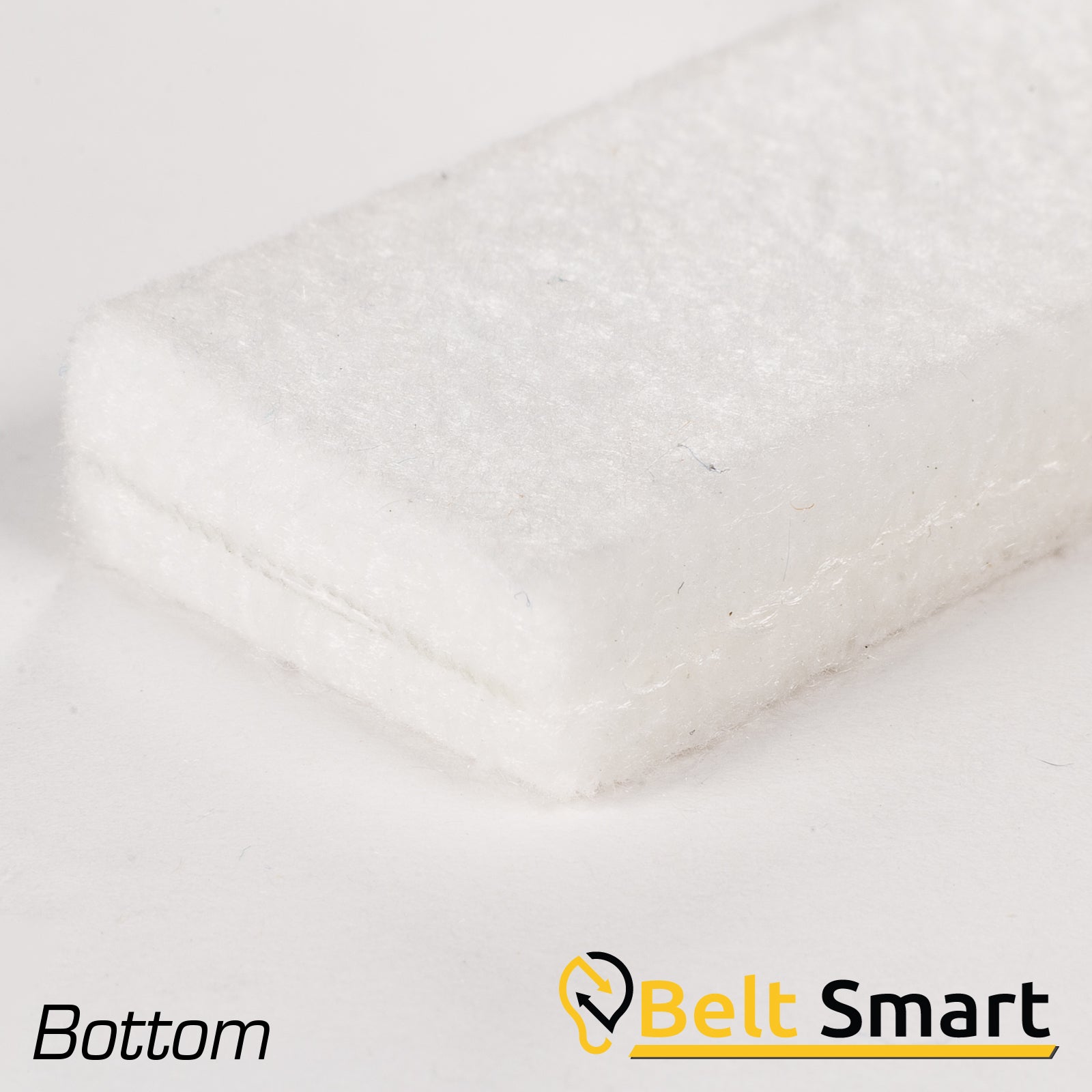

BS016B - #16b Beltservice Polyveyor 1.5 CFM Rated (#1951) Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Air gravity conveyors Dry bulk powders Cement Barite Silica Alumina
Features:
Used to fluidize dry bulk powders such as: cement, barite, silica, alumina, etc. Provides several advantages over woven air permeable fabrics because it does not require stretching prior to installation and will not unravel when cut or punched. Abrasion resistant WearSlide combines the best features of non-woven polyester with the durability of rubber.

	Polyveyor® .5 CFM Rated (#1950) Pt No.: 16a	Polyveyor® 1.5 CFM Rated (#1951) Pt No.: 16b	WearSlide LP (Low Permeability) .5 CFM Pt No.: 16g	WearSlide HP (High Permeability) 1.5 CFM Pt No.: 16h
Thickness	1/4"	1/4"	N/A	N/A
Covers	N/A	N/A	N/A	N/A
Carcass	Needled Polyester
Working Tension Per Inch Width	60 lbs.	60 lbs.	N/A	N/A
Approx. Weight Lbs. Per Inch Width	.07 lbs.	.07 lbs.	N/A	N/A
Min. Pulley Diameter	N/A	N/A	N/A	N/A
Temperature Range	-60 deg. F / 310 deg. F		N/A	N/A
Clipper Lace	N/A	N/A	N/A	N/A
Alligator Lace	N/A	N/A	N/A	N/A

CFM = Cubic Feet per Minute
