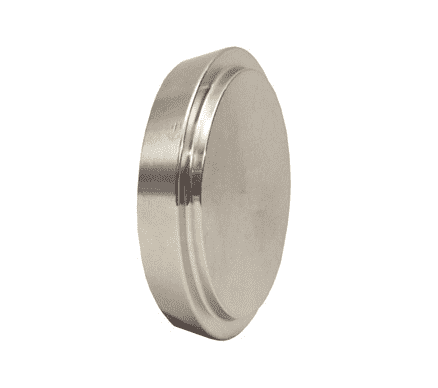

16AMP-R400DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 4" Tube OD - 100 DN Size
Dixon's Bradford™ Sanitary European Fittings - DIN Blank Caps - 316 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $104.12 |
| 20–59 | $94.15 |
| 60+ | $83.08 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | DN Size | Dimensions
|
Weight (Lbs.) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| 16AMP-R100DIN | 1" | 25 | .51" | 1.73" | .39" | 1.38" | 0.1300 |
| 16AMP-R150DIN | 1-1/2" | 40 | .51" | 2.20" | .39" | 1.89" | 0.2300 |
| 16AMP-R200DIN | 2" | 50 | .55" | 2.68" | .43" | 2.40" | 0.3300 |
| 16AMP-R250DIN | 2-1/2" | 65 | .63" | 3.39" | .47" | 3.11" | 0.6100 |
| 16AMP-R300DIN | 3" | 80 | .63" | 3.66" | .47" | 3.39" | 0.7500 |
| 16AMP-R400DIN | 4" | 100 | .79" | 4.76" | .59" | 4.49" | 1.2900 |
