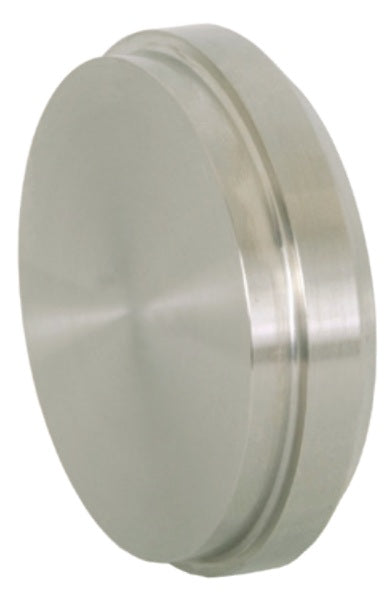

16A-R150 Dixon Valve 304 Stainless Steel Sanitary Plain Bevel Seat Solid End Cap - 1-1/2" Tube OD
Dixon Sanitary Fittings Sanitary Bevel Seat End Cap - Plain Bevel Seat Solid End Cap
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.71 |
| 40–79 | $31.39 |
| 80+ | $27.70 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Dimensions |
||
|---|---|---|---|---|---|
| A | B | C | |||
| 16A-G100 | 16A-R100 | 1" | 1.31" | 0.47" | 1.16" |
| 16A-G150 | 16A-R150 | 1-1/2" | 1.84" | 0.56" | 1.68" |
| 16A-G200 | 16A-R200 | 2" | 2.38" | 0.63" | 2.19" |
| 16A-G250 | 16A-R250 | 2-1/2" | 2.91" | 0.66" | 2.71" |
| 16A-G300 | 16A-R300 | 3" | 3.44" | 0.72" | 3.22" |
| 16A-G400 | 16A-R400 | 4" | 4.50" | 0.81" | 4.26" |
