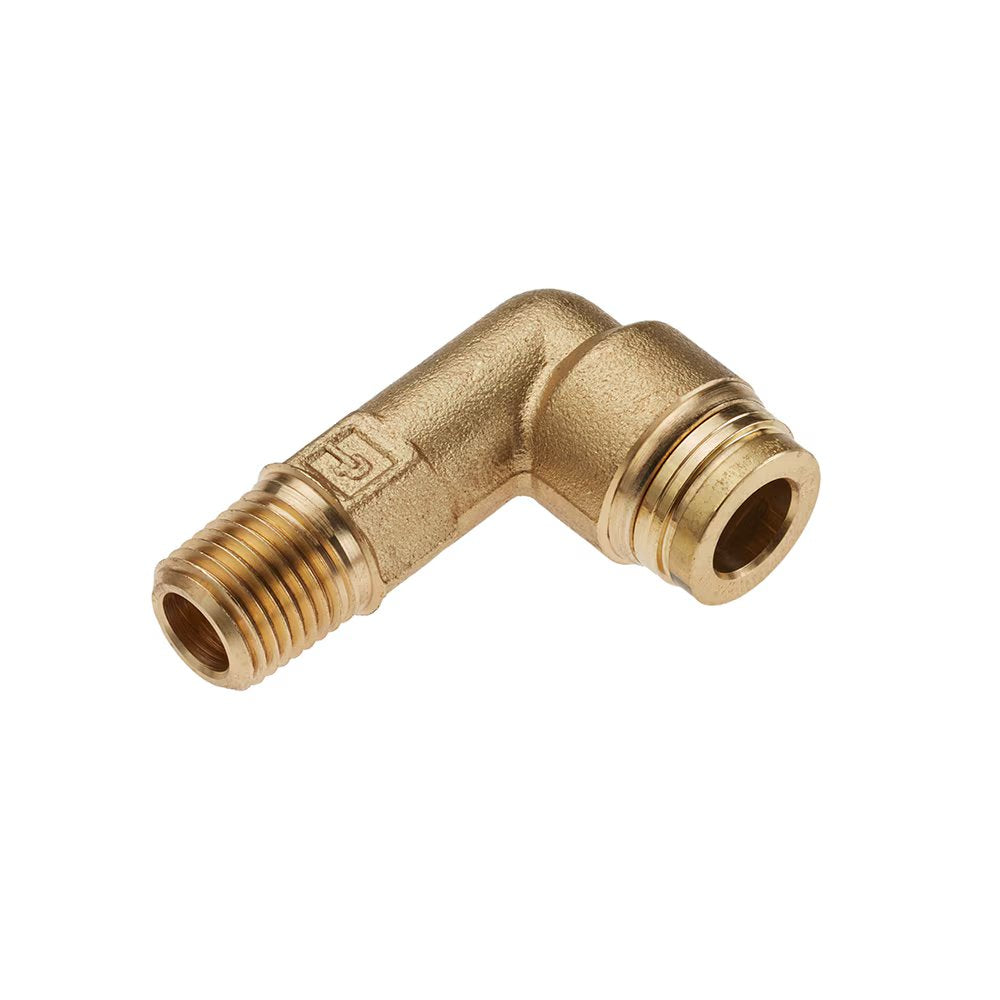

169PTCNSL-6-4 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/4" Male NPT Thread | 90° Long Elbow | Brass | Pack of 10
by Parker Hannifin
PTC Brass Fittings:Male Elbow Long Rigid 90° 169PTCNSL
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $365.03 |
| 15–29 | $330.08 |
| 30+ | $291.25 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Wrench Flats |
| 169PTCNSL-6-4 | 3/8" | 1/4" | 1.01" | 1.63" | 9/16" |
| 169PTCNSL-6-8 | 3/8" | 1/2" | 1.19" | 2.50" | 7/8" |
| 169PTCNSL-6-6 | 3/8" | 3/8" | 1.19" | 2.50" | 7/8" |
| 169PTCNSL-8-8 | 1/2" | 1/2" | 1.22" | 2.50" | 7/8" |
