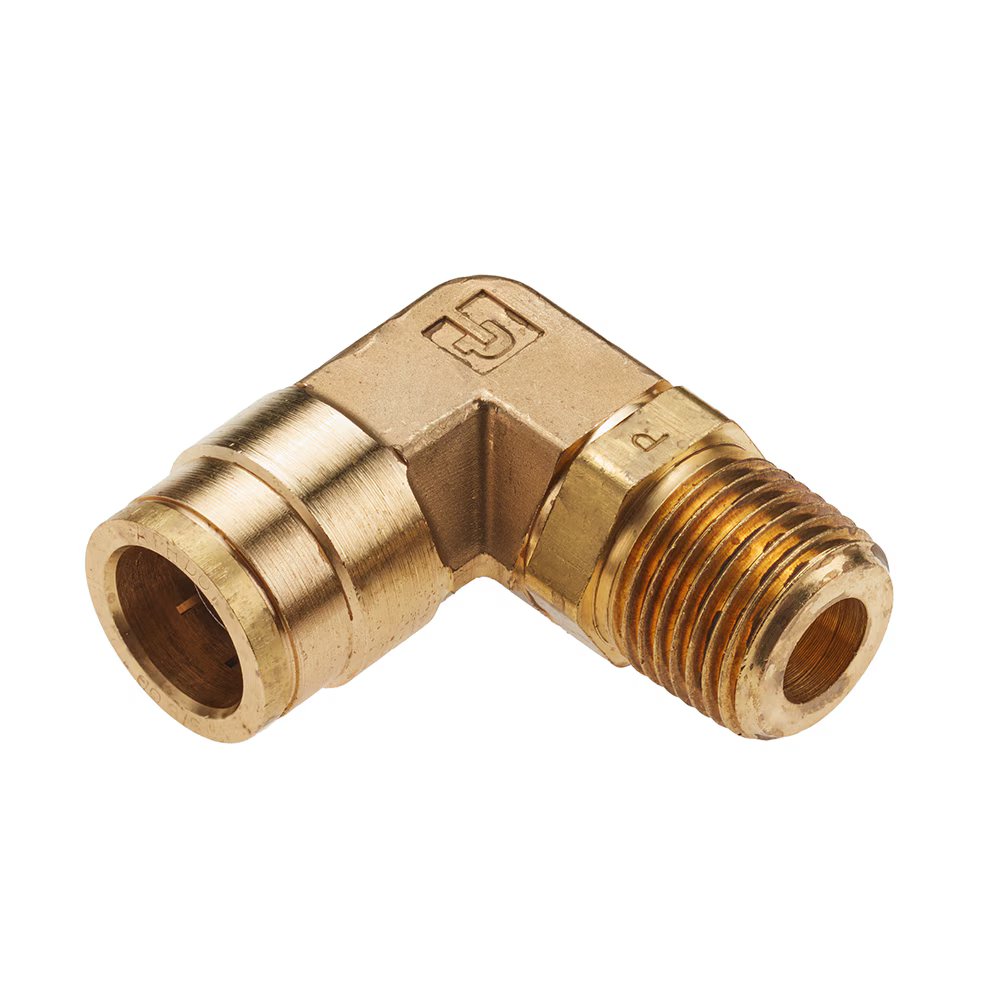

169PTC-8-8 by Parker | Threaded Fitting | 1/2" Swivel Push-to-Connect Connector x 3/8" Male NPT Pipe Thread | 7/8" Hex | 90° Elbow | Brass | Pack of 5
by Parker Hannifin
PTC Brass Fittings:Male Elbow 90° 169PTC
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $138.84 |
| 30–59 | $125.55 |
| 60+ | $110.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 250 PSI (17.2 bar) |
| Temperature Range: | -50° to +230° F (-45.5° to +100° C) |
| Temperature Range (3/16" & 5/32 only): | -40 to +200F (-40 to +93.3C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | L | N | Wrench Flats | Hex (B) |
| 169PTC-4-2 | 1/4" | 1/8" | .85" | .96" | 1/8" | 9/16" |
| 169PTC-4-4 | 1/4" | 1/4" | .85" | 1.22" | 1/2" | 9/16" |
| 169PTC-4-6 | 1/4" | 3/8" | .85" | 1.22" | 1/2" | 11/16" |
| 169PTC-6-2 | 3/8" | 1/8" | 1.02" | 1.21" | 9/16" | 11/16" |
| 169PTC-6-4 | 3/8" | 1/4" | 1.02" | 1.33" | 9/16" | 11/16" |
| 169PTC-6-6 | 3/8" | 3/8" | 1.02" | 1.33" | 9/16" | 11/16" |
| 169PTC-6-8 | 3/8" | 1/2" | 1.02" | 1.33" | 9/16" | 7/8" |
| 169PTC-8-4 | 1/2" | 1/4" | 1.16" | 1.40" | 11/16" | 11/16" |
| 169PTC-8-6 | 1/2" | 3/8" | 1.16" | 1.42" | 11/16" | 11/16" |
| 169PTC-8-8 | 1/2" | 1/2" | 1.16" | 1.63" | 11/16" | 7/8" |
| 169PTC-10-6 | 5/8" | 3/8" | 1.47" | 1.41" | 7/8" | 7/8" |
| 169PTC-10-8 | 5/8" | 1/2" | 1.47" | 1.60" | 7/8" | 7/8" |
*Add VS prefix to order with Vibra Seal
