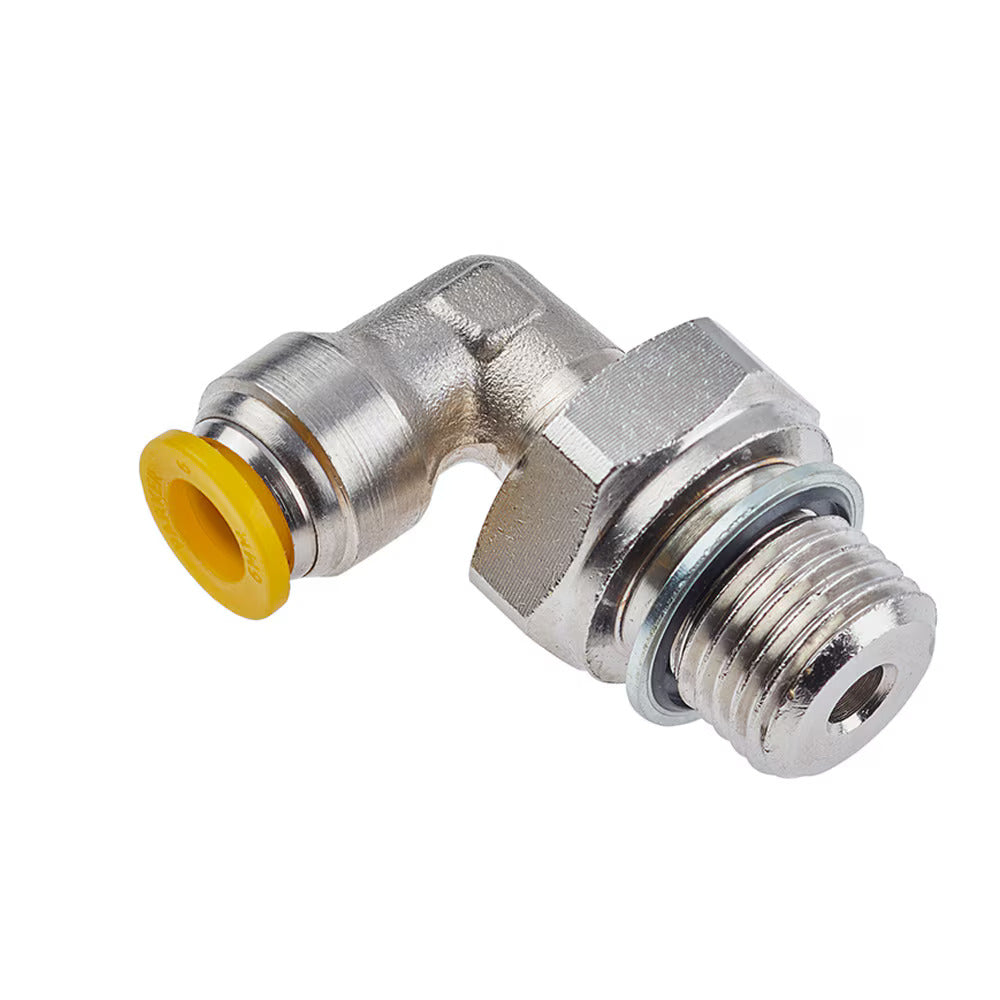

169PLP-4M-M5 by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 4mm Swivel x M5X0.8 Male BSPP Thread | 3/8" Hex | 19.05mm Length (L) | 19.79mm (N) | 2.425mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:169PLP Male Elbow Swivel 90° – BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $113.88 |
| 20–59 | $102.98 |
| 60+ | $90.86 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPP | Hex (C) | L | N | Flow Diameter (D) |
| 169PLP-4M-M5 | 4 mm | M5X0.8 | 3/8" | 19.05 mm | 19.79 mm | 2.425 mm |
| 169PLP-4M-2G | 4 mm | 1/8" | 9/16" | 19.05 mm | 23.92 mm | 3.175 mm |
| 169PLP-4M-4G | 4 mm | 1/4" | 3/4" | 19.05 mm | 30.27 mm | 3.175 mm |
| 169PLP-6M-M5* | 6 mm | M5X0.8 | 3/8" | 19.12 mm | 18.52 mm | 2.425 mm |
| 169PLP-6M-2G | 6 mm | 1/8" | 9/16" | 19.12 mm | 22.94 mm | 3.960 mm |
| 169PLP-6M-4G | 6 mm | 1/4" | 3/4" | 19.12 mm | 29.23 mm | 3.960 mm |
| 169PLP-6M-6G | 6 mm | 3/8" | 11/16" | 19.12 mm | 31.04 mm | 2.425 mm |
| 169PLP-8M-2G | 8 mm | 1/8" | 9/16" | 24.25 mm | 27.13 mm | 6.350 mm |
| 169PLP-8M-4G | 8 mm | 1/4" | 3/4" | 24.20 mm | 33.25 mm | 6.350 mm |
| 169PLP-8M-6G | 8 mm | 3/8" | 11/16" | 24.25 mm | 33.22 mm | 6.350 mm |
| 169PLP-10M-4G | 10 mm | 1/4" | 3/4" | 23.75 mm | 32.77 mm | 6.350 mm |
| 169PLP-10M-6G | 10 mm | 3/8" | 11/16" | 23.75 mm | 32.61 mm | 6.350 mm |
| 169PLP-10M-8G | 10 mm | 1/2" | 1-1/16" | 23.75 mm | 37.59 mm | 6.350 mm |
| 169PLP-12M-4G | 12 mm | 1/4" | 3/4" | 26.63 mm | 35.20 mm | 7.950 mm |
| 169PLP-12M-6G | 12 mm | 3/8" | 7/8" | 26.63 mm | 53.20 mm | 9.525 mm |
| 169PLP-12M-8G | 12 mm | 1/2" | 1-1/16" | 26.63 mm | 38.96 mm | 9.525 mm |
*M5 seal is neoprene
