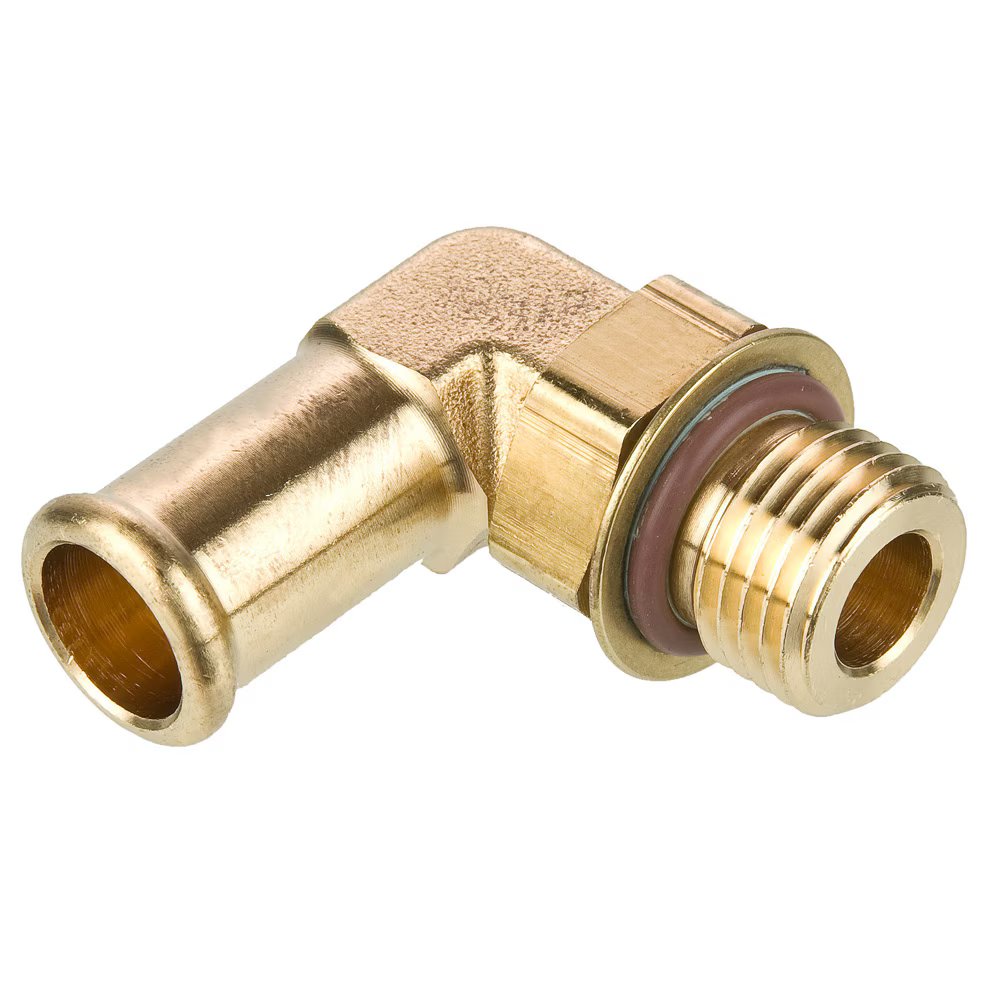

169HB-10-MI27 by Parker | Hose Barb Fittings | 5/8" Hose Size x M27X2.0 Metric Thread | 7/8" Hex | 90° Elbow | Brass | Pack of 10

169HB-10-MI27 by Parker | Hose Barb Fittings | 5/8" Hose Size x M27X2.0 Metric Thread | 7/8" Hex | 90° Elbow | Brass | Pack of 10

Sale price$406.64

by Parker Hannifin
Hose Barb Fittings:Beaded Elbow to Metric Adaptor 169HB-X-MIX

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $382.24
15–29 $345.64
30+ $304.98
Discounts applied in cart/checkout.

Product Data:

Series:
  • 169HB Series
Shape:

90° Elbow

Material(s):
  • Brass
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Straight Thread Hex L M N D
169HB-10-MI27 5/8" M27X2.0 7/8" 1.41" .78" 1.63" .50"
169HB-16-MI27 1" M27X2.0 1" 1.67" .97" 1.68" .71"
169HB-16-MI33 1" M33X2.0 1-5/16" 1.75" .97" 1.90" .84"

Note: Fluorocarbon o-ring is standard
