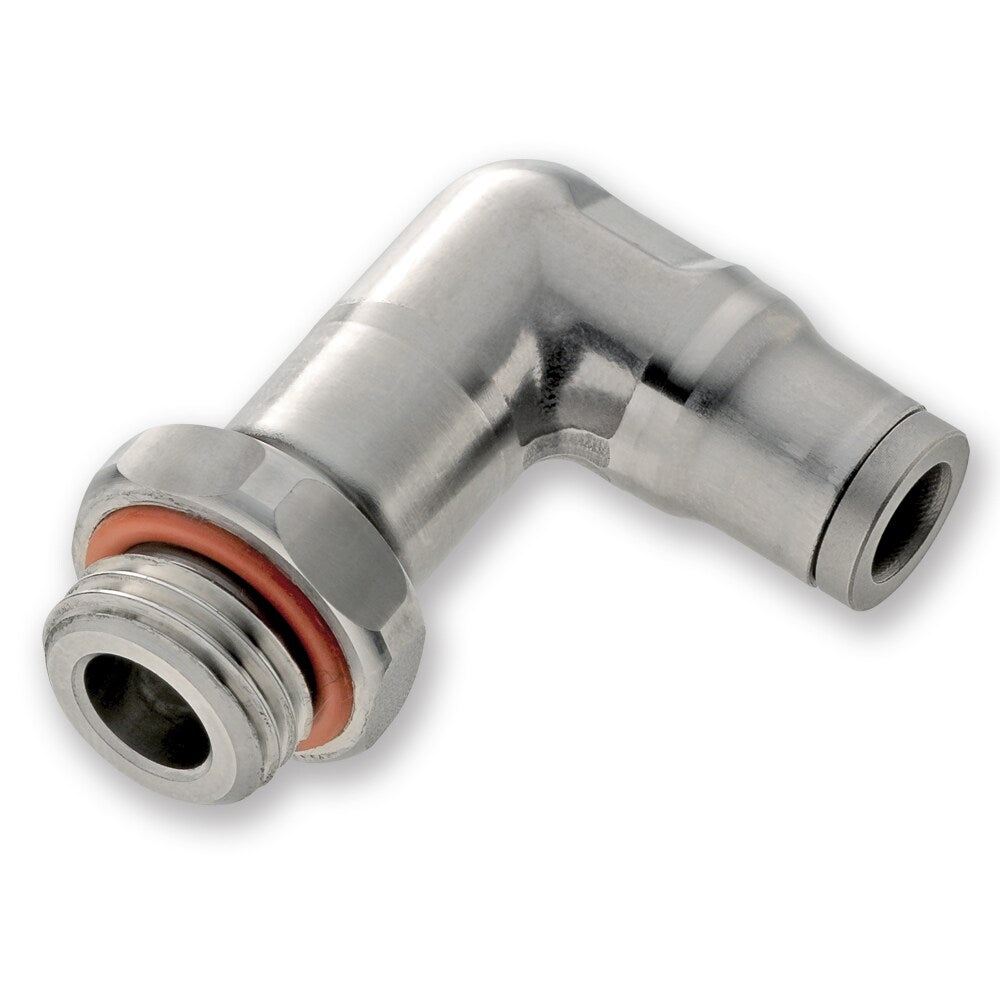

169PLSX-8M-6G by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 8mm Tube Size x 3/8" Male BSPP Thread | 17mm Height | 90° Long Elbow | Stainless Steel | Pack of 2
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:169PLSX Extended Male Elbow - Metric Tube to BSPP, M5
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $303.98 |
| 15–29 | $274.87 |
| 30+ | $242.54 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP / M5 | F | H | L |
| 169PLSX-4M-M5 | 4 mm | M5X0.8 | 10 mm | 27.00 mm | 19 mm |
| 169PLSX-4M-2G | 4 mm | 1/8" | 10 mm | 27.00 mm | 19 mm |
| 169PLSX-4M-4G | 4 mm | 1/4" | 17 mm | 27.00 mm | 19 mm |
| 169PLSX-6M-M5 | 6 mm | M5X0.8 | 13 mm | 33.00 mm | 24 mm |
| 169PLSX-6M-2G | 6 mm | 1/8" | 13 mm | 33.00 mm | 24 mm |
| 169PLSX-6M-4G | 6 mm | 1/4" | 17 mm | 32.00 mm | 24 mm |
| 169PLSX-8M-2G | 8 mm | 1/8" | 14 mm | 35.00 mm | 25 mm |
| 169PLSX-8M-4G | 8 mm | 1/4" | 17 mm | 35.00 mm | 25 mm |
| 169PLSX-8M-6G | 8 mm | 3/8" | 21 mm | 34.50 mm | 25 mm |
| 169PLSX-10M-4G | 10 mm | 1/4" | 18 mm | 43.00 mm | 31 mm |
| 169PLSX-10M-6G | 10 mm | 3/8" | 21 mm | 42.00 mm | 31 mm |
