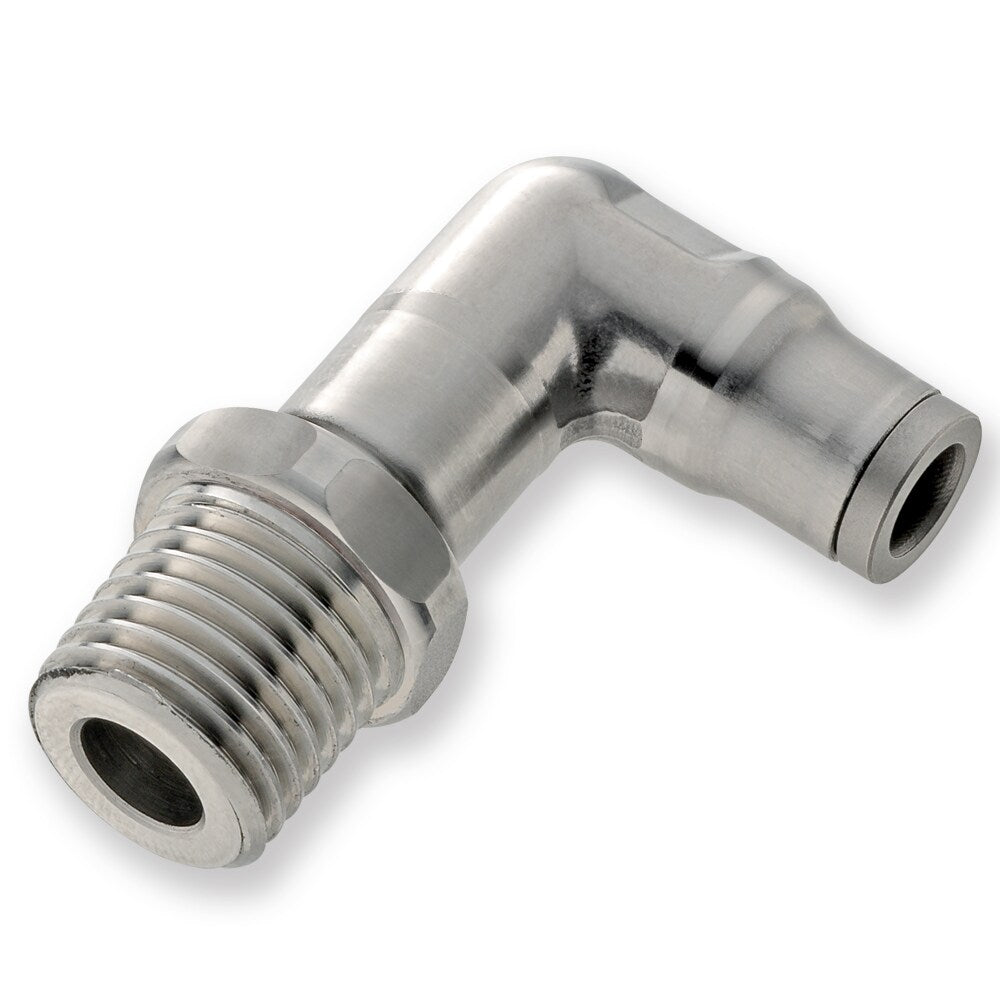

169PLSX-8M-2R by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/8" Male BSPT Threads | 14 mm Height | 90° Long Elbow | Stainless Steel | Pack of 5
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:169PLSX Extended Male Elbow - Metric Tube to BSPT
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $427.13 |
| 15–29 | $386.23 |
| 30+ | $340.79 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | BSPT | F | H | L |
| 169PLSX-4M-2R | 4 mm | 1/8" | 10 mm | 25 mm | 19.00 mm |
| 169PLSX-6M-2R | 6 mm | 1/8" | 13 mm | 30 mm | 24.00 mm |
| 169PLSX-6M-4R | 6 mm | 1/4" | 14 mm | 30 mm | 24.00 mm |
| 169PLSX-8M-2R | 8 mm | 1/8" | 14 mm | 34 mm | 24.90 mm |
| 169PLSX-8M-4R | 8 mm | 1/4" | 14 mm | 34 mm | 24.90 mm |
| 169PLSX-10M-4R | 10 mm | 1/4" | 19 mm | 39 mm | 31.00 mm |
| 169PLSX-10M-6R | 10 mm | 3/8" | 19 mm | 39 mm | 31.00 mm |
