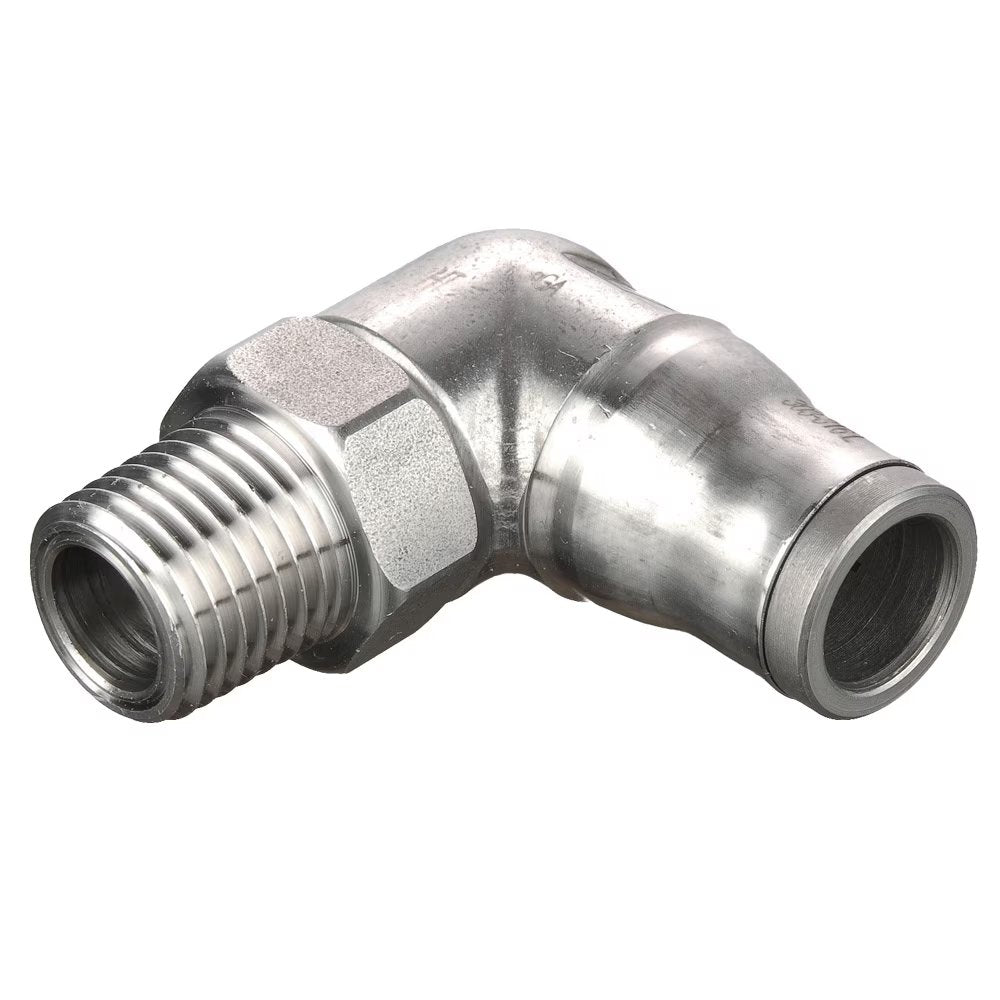

169PLS-4-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 1/4" Tube Size x 1/8" Male NPT Threads | 13 mm Height | 90° Elbow | Stainless Steel | Pack of 10
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:169PLS Male Elbow - Inch Tube to NPT, UNF
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $856.63 |
| 15–29 | $774.61 |
| 30+ | $683.48 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | NPT / UNF | F | H | L |
| 169PLS-4M-0 | 5/32" | 10-32" | 10 mm | .98" | .77" |
| 169PLS-4-2 | 1/4" | 1/8" | 13 mm | .85" | .91" |
| 169PLS-4-4 | 1/4" | 1/4" | 14 mm | .85" | .91" |
| 169PLS-6-4 | 3/8" | 1/4" | 17 mm | 1.12" | 1.20" |
| 169PLS-6-6 | 3/8" | 3/8" | 19 mm | 1.12" | 1.20" |
| 169PLS-8-4 | 1/2" | 1/4" | 22 mm | 1.34" | 1.30" |
| 169PLS-8-6 | 1/2" | 3/8" | 22 mm | 1.34" | 1.30" |
| 169PLS-8-8 | 1/2" | 1/2" | 22 mm | 1.34" | 1.30" |
